PC817X3NSZ1B

In Stock: 5,700

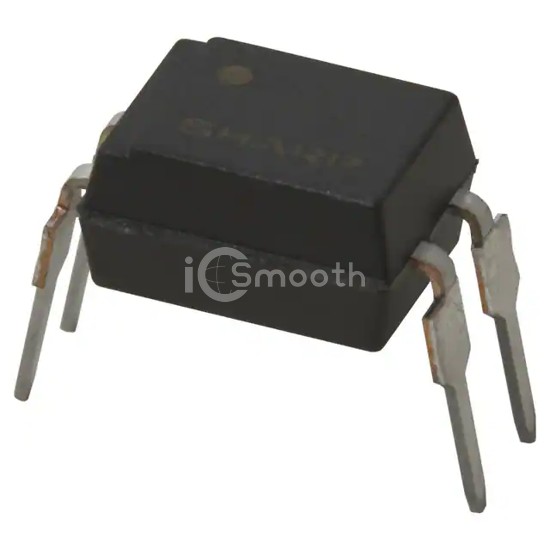

PC817X3NSZ1B - SHARP/Socle Technology - Optoisolators - Transistor, Photovoltaic Output
REF: PC817X3NSZ1B SHARP/Socle Technology
PC817X3NSZ1B

SHARP/Socle Technology

OPTOISOLATOR 5KV TRANS DIP

PC817X3NSZ1B is a Optoisolators - Transistor, Photovoltaic Output manufactured by SHARP/Socle Technology. OPTOISOLATOR 5KV TRANS DIP. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-DIP (0.300", 7.62mm).

Request a Quote

In Stock: 5,700

Specifications

18 parameters
Product StatusActive
Number of Channels1
Voltage - Isolation-
Current Transfer Ratio (Min)-
Current Transfer Ratio (Max)-
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)4µs, 3µs
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)80V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.2V
Current - DC Forward (If) (Max)50 mA
Vce Saturation (Max)200mV
Operating Temperature-30°C ~ 100°C
Mounting TypeThrough Hole
Package / Case4-DIP (0.300", 7.62mm)
Supplier Device Package4-DIP
