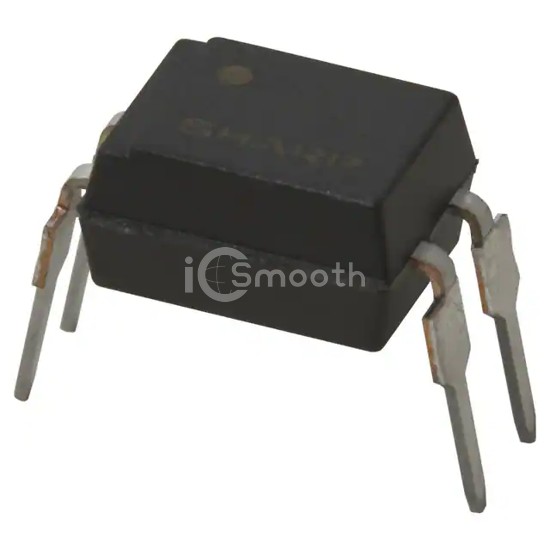

Name: PC817X2NSZ9F
Brand: SHARP/Socle Technology
SKU: PC817X2NSZ9F
Price: 0.27 USD
Availability: InStock

REF: PC817X2NSZ9F SHARP/Socle Technology

PC817X2NSZ9F

SHARP/Socle Technology

PHOTOCOUPLER

PC817X2NSZ9F is a Optoisolators - Transistor, Photovoltaic Output manufactured by SHARP/Socle Technology. PHOTOCOUPLER. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-DIP (0.300", 7.62mm).

Datasheet Request a Quote

In Stock: 1,921

Tiered Pricing USD

1+ $0.2700 —

10+ $0.1870 -31%

100+ $0.1317 -51%

500+ $0.1062 -61%

1,000+ $0.0978 -64%

2,000+ $0.0907 -66%

5,000+ $0.0828 -69%

10,000+ $0.0779 -71%

25,000+ $0.0725 -73% BEST

Specifications

18 parameters

Product Status	Obsolete
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	50% @ 5mA
Current Transfer Ratio (Max)	600% @ 5mA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	4µs, 3µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	80V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Vce Saturation (Max)	200mV
Operating Temperature	-30°C ~ 100°C
Mounting Type	Through Hole
Package / Case	4-DIP (0.300", 7.62mm)
Supplier Device Package	4-DIP
