PC817X2CSP9F

In Stock: 3,135
PC817X2CSP9F - SHARP/Socle Technology - Optoisolators - Transistor, Photovoltaic Output
REF: PC817X2CSP9F SHARP/Socle Technology
PC817X2CSP9F

SHARP/Socle Technology

PHOTOCOUPLER

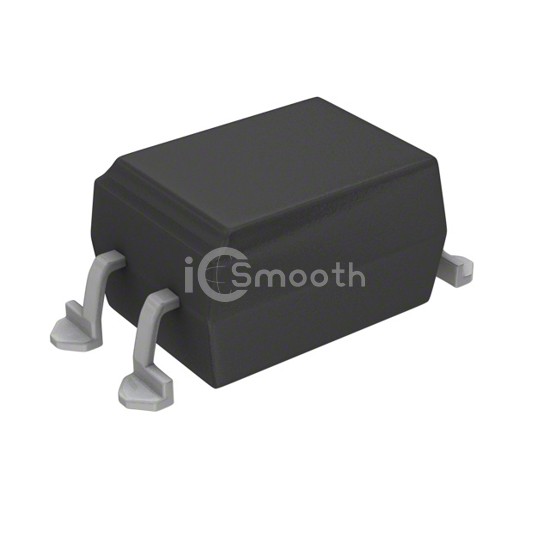

PC817X2CSP9F is a Optoisolators - Transistor, Photovoltaic Output manufactured by SHARP/Socle Technology. PHOTOCOUPLER. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 3,135

Tiered Pricing USD
40,000+ $0.0714 —
50,000+ $0.0704 -1%
100,000+ $0.0676 -5% BEST

Specifications

18 parameters
Product StatusObsolete
Number of Channels1
Voltage - Isolation5000Vrms
Current Transfer Ratio (Min)50% @ 5mA
Current Transfer Ratio (Max)600% @ 5mA
Turn On / Turn Off Time (Typ)-
Rise / Fall Time (Typ)4µs, 3µs
Input TypeDC
Output TypeTransistor
Voltage - Output (Max)80V
Current - Output / Channel50mA
Voltage - Forward (Vf) (Typ)1.2V
Current - DC Forward (If) (Max)50 mA
Vce Saturation (Max)200mV
Operating Temperature-30°C ~ 100°C
Mounting TypeSurface Mount
Package / Case4-SMD, Gull Wing
Supplier Device Package4-SMD
