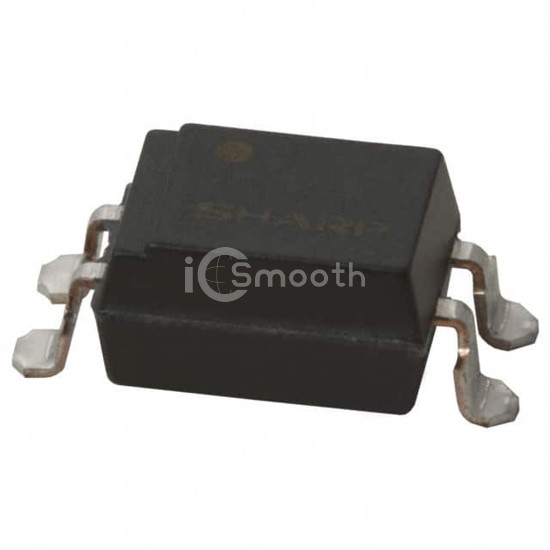

Name: PC81710NIP1B
Brand: SHARP/Socle Technology
SKU: PC81710NIP1B
Price: 1.07 USD
Availability: InStock

REF: PC81710NIP1B SHARP/Socle Technology

PC81710NIP1B

SHARP/Socle Technology

OPTOISOLATOR 5KV TRANS 4SMD

PC81710NIP1B is a Optoisolators - Transistor, Photovoltaic Output manufactured by SHARP/Socle Technology. OPTOISOLATOR 5KV TRANS 4SMD. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 29,592

Tiered Pricing USD

1+ $1.0700 —

10+ $0.7480 -30%

100+ $0.5538 -48%

500+ $0.4675 -56%

1,000+ $0.4393 -59% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	5000Vrms
Current Transfer Ratio (Min)	100% @ 500µA
Current Transfer Ratio (Max)	600% @ 500µA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	4µs, 3µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	80V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	10 mA
Vce Saturation (Max)	200mV
Operating Temperature	-30°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	-
