Name: PC3SF11YVZBH
Brand: SHARP/Socle Technology
SKU: PC3SF11YVZBH
Price: 0.79 USD
Availability: InStock

REF: PC3SF11YVZBH SHARP/Socle Technology

PC3SF11YVZBH

SHARP/Socle Technology

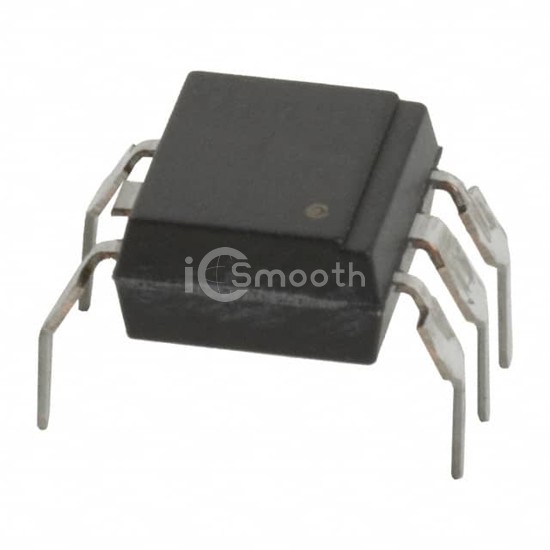

OPTOISOLATOR 5KV TRIAC DIP

PC3SF11YVZBH is a Optoisolators - Triac, SCR Output manufactured by SHARP/Socle Technology. OPTOISOLATOR 5KV TRIAC DIP. Key specifications: mounting type Through Hole, operating temperature -30°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 6-DIP (0.400", 10.16mm), 5 Leads.

Request a Quote

In Stock: 2,912

Specifications

18 parameters

Product Status	Active
Output Type	Triac
Zero Crossing Circuit	No
Number of Channels	1
Voltage - Isolation	5000Vrms
Voltage - Off State	600 V
Static dV/dt (Min)	1kV/µs
Current - LED Trigger (Ift) (Max)	7mA
Current - On State (It (RMS)) (Max)	100 mA

Current - Hold (Ih)	3.5mA
Turn On Time	100µs (Max)
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	50 mA
Operating Temperature	-30°C ~ 100°C
Mounting Type	Through Hole
Package / Case	6-DIP (0.400", 10.16mm), 5 Leads
Supplier Device Package	6-DIP
Approval Agency	BSI, CSA, DEMKO, FIMKO, SEMKO, UR, VDE
