PC3SD21YXPDH

In Stock: 7,279

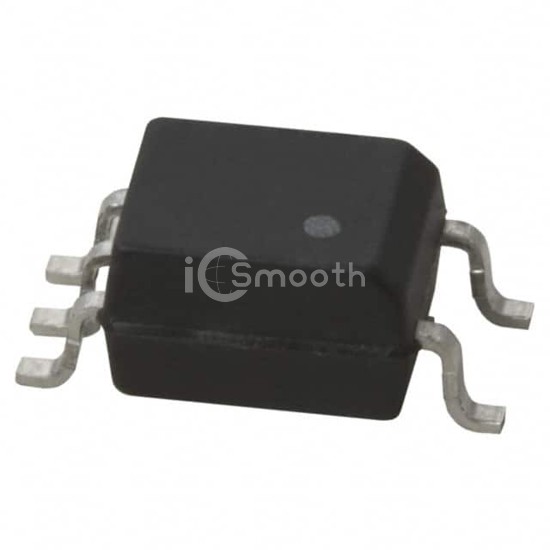

PC3SD21YXPDH - SHARP/Socle Technology - Optoisolators - Triac, SCR Output
REF: PC3SD21YXPDH SHARP/Socle Technology
PC3SD21YXPDH

SHARP/Socle Technology

OPTOISOLATOR 5KV TRIAC SMD

PC3SD21YXPDH is a Optoisolators - Triac, SCR Output manufactured by SHARP/Socle Technology. OPTOISOLATOR 5KV TRIAC SMD. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 6-SMD (5 Leads), Gull Wing.

Request a Quote

In Stock: 7,279

Tiered Pricing USD
4,000+ $0.6394 —
5,000+ $0.6250 -2%
10,000+ $0.6106 -5% BEST

Specifications

18 parameters
Product StatusActive
Output TypeTriac
Zero Crossing CircuitYes
Number of Channels1
Voltage - Isolation5000Vrms
Voltage - Off State600 V
Static dV/dt (Min)1kV/µs
Current - LED Trigger (Ift) (Max)3mA
Current - On State (It (RMS)) (Max)100 mA
Current - Hold (Ih)3.5mA
Turn On Time50µs (Max)
Voltage - Forward (Vf) (Typ)1.2V
Current - DC Forward (If) (Max)50 mA
Operating Temperature-30°C ~ 100°C
Mounting TypeSurface Mount
Package / Case6-SMD (5 Leads), Gull Wing
Supplier Device Package6-SMD
Approval AgencyCSA, UR, VDE
