Name: PC367NJ0000F
Brand: SHARP/Socle Technology
SKU: PC367NJ0000F
Price: 1.04 USD
Availability: InStock

REF: PC367NJ0000F SHARP/Socle Technology

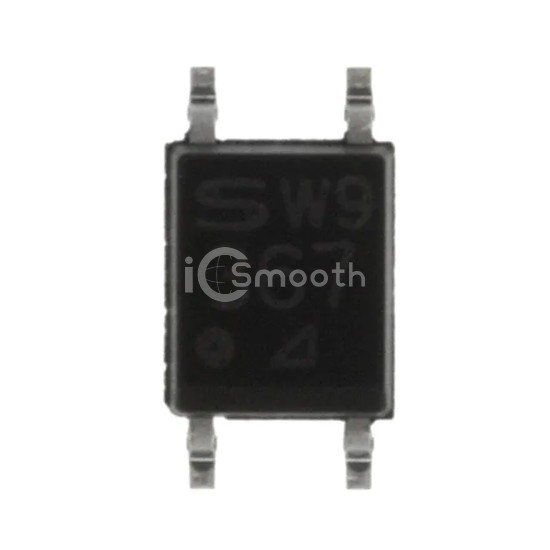

PC367NJ0000F

SHARP/Socle Technology

OPTOISO 3.75KV TRANS 4-MINI-FLAT

PC367NJ0000F is a Optoisolators - Transistor, Photovoltaic Output manufactured by SHARP/Socle Technology. OPTOISO 3.75KV TRANS 4-MINI-FLAT. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 100°C, voltage - forward (vf) (typ) 1.2V, package / case 4-SMD, Gull Wing.

Datasheet Request a Quote

In Stock: 9,963

Tiered Pricing USD

1+ $1.0400 —

10+ $0.7300 -30%

100+ $0.5404 -48%

500+ $0.4559 -56%

1,000+ $0.4283 -59% BEST

Specifications

18 parameters

Product Status	Active
Number of Channels	1
Voltage - Isolation	3750Vrms
Current Transfer Ratio (Min)	100% @ 500µA
Current Transfer Ratio (Max)	500% @ 500µA
Turn On / Turn Off Time (Typ)	-
Rise / Fall Time (Typ)	4µs, 3µs
Input Type	DC
Output Type	Transistor

Voltage - Output (Max)	80V
Current - Output / Channel	50mA
Voltage - Forward (Vf) (Typ)	1.2V
Current - DC Forward (If) (Max)	10 mA
Vce Saturation (Max)	200mV
Operating Temperature	-30°C ~ 100°C
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-Mini-Flat
