Name: SR05
Brand: SMC Diode Solutions
SKU: SR05
Price: 0.20 USD
Availability: InStock

REF: SR05 SMC Diode Solutions

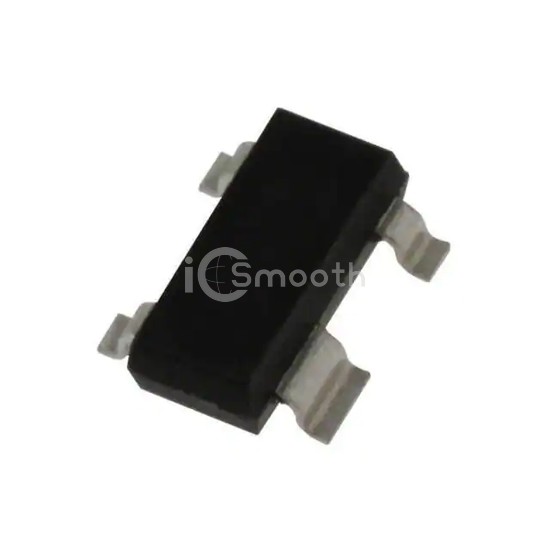

SR05

TVS DIODE 5VWM 20VC SOT143

SR05 is a TVS - Diodes manufactured by SMC Diode Solutions. TVS DIODE 5VWM 20VC SOT143. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case TO-253-4, TO-253AA.

Datasheet Request a Quote

In Stock: 1,462

Tiered Pricing USD

3,000+ $0.2049 —

6,000+ $0.1902 -7%

9,000+ $0.1826 -11%

15,000+ $0.1796 -12% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	2
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	6V
Voltage - Clamping (Max) @ Ipp	20V
Current - Peak Pulse (10/1000µs)	25A (8/20µs)

Power - Peak Pulse	500W
Power Line Protection	Yes
Applications	Ethernet, USB
Capacitance @ Frequency	6.5pF @ 1MHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-253-4, TO-253AA
Supplier Device Package	SOT-143
