Name: SMP1255PUTG
Brand: SMC Diode Solutions
SKU: SMP1255PUTG
Price: 2.61 USD
Availability: InStock

REF: SMP1255PUTG SMC Diode Solutions

SMP1255PUTG

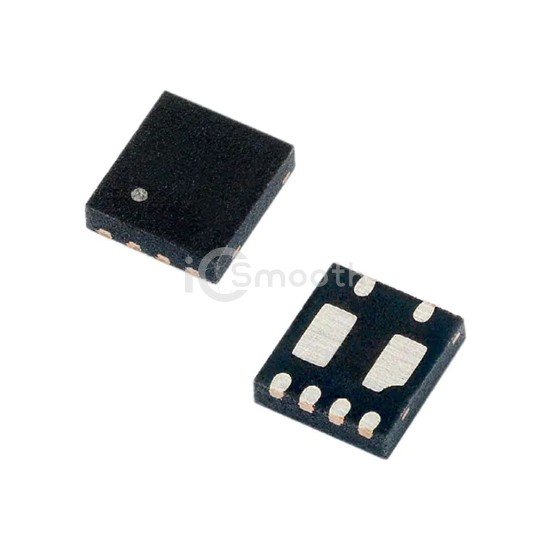

TVS DIODE 4VWM 8.5VC 6UDFN

SMP1255PUTG is a TVS - Diodes manufactured by SMC Diode Solutions. TVS DIODE 4VWM 8.5VC 6UDFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case 6-UFDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 2,969

Tiered Pricing USD

1+ $2.6100 —

10+ $1.6860 -35%

100+ $1.1557 -56%

500+ $0.9290 -64%

1,000+ $0.9289 -64% BEST

Specifications

16 parameters

Product Status	Active
Type	Steering (Rail to Rail)
Unidirectional Channels	3
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	4V (Max)
Voltage - Breakdown (Min)	4.5V
Voltage - Clamping (Max) @ Ipp	8.5V
Current - Peak Pulse (10/1000µs)	4A (8/20µs)

Power - Peak Pulse	-
Power Line Protection	Yes
Applications	USB OTG
Capacitance @ Frequency	0.5pF @ 1MHz
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	6-UFDFN Exposed Pad
Supplier Device Package	6-UDFN (1.8x2)
