Name: SD52303
Brand: SMC Diode Solutions
SKU: SD52303
Price: 0.27 USD
Availability: InStock

REF: SD52303 SMC Diode Solutions

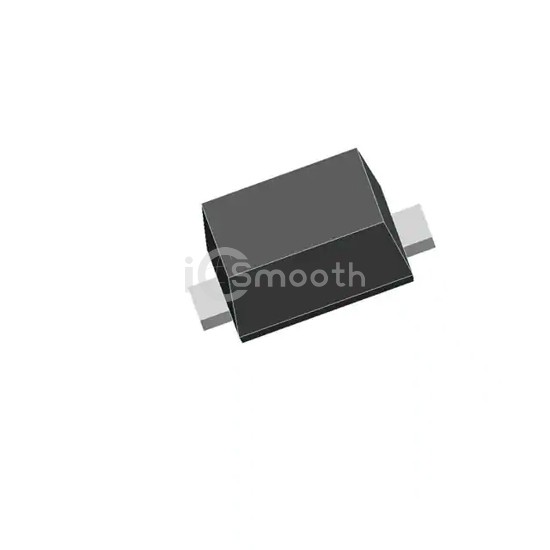

SD52303

158W, 3.3V, SOD-523, ESD PROTECT

SD52303 is a TVS - Diodes manufactured by SMC Diode Solutions. 158W, 3.3V, SOD-523, ESD PROTECT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-79, SOD-523.

Datasheet Request a Quote

In Stock: 5,129

Tiered Pricing USD

1+ $0.2700 —

10+ $0.1620 -40%

100+ $0.1012 -63%

500+ $0.0744 -72%

1,000+ $0.0657 -76%

2,000+ $0.0584 -78% BEST

Specifications

16 parameters

Product Status	Active
Type	Steering (Rail to Rail)
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	3.3V (Max)
Voltage - Breakdown (Min)	5V
Voltage - Clamping (Max) @ Ipp	14.1V
Current - Peak Pulse (10/1000µs)	11.2A (8/20µs)

Power - Peak Pulse	158W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	105pF @ 1MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-79, SOD-523
Supplier Device Package	SOD-523
