Name: SD32305
Brand: SMC Diode Solutions
SKU: SD32305
Price: 0.36 USD
Availability: InStock

REF: SD32305 SMC Diode Solutions

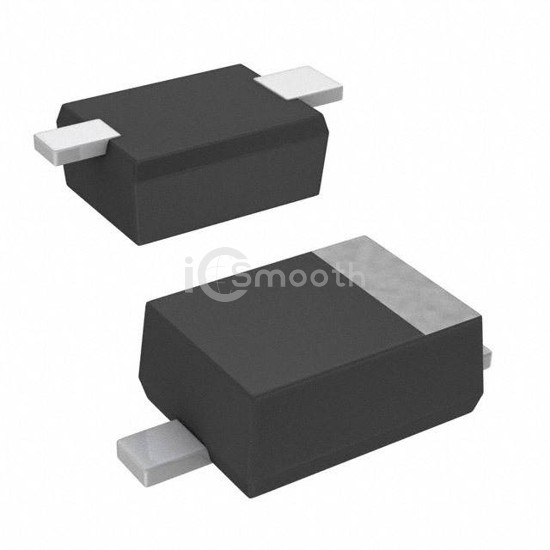

SD32305

TVS DIODE 5VWM 9.8VC SOD323

SD32305 is a TVS - Diodes manufactured by SMC Diode Solutions. TVS DIODE 5VWM 9.8VC SOD323. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case SC-76, SOD-323.

Datasheet Request a Quote

In Stock: 2,227

Tiered Pricing USD

1+ $0.3600 —

10+ $0.2200 -39%

100+ $0.1379 -62%

500+ $0.1023 -72%

1,000+ $0.0908 -75% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	6V
Voltage - Clamping (Max) @ Ipp	9.8V
Current - Peak Pulse (10/1000µs)	1A (8/20µs)

Power - Peak Pulse	300W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	600pF @ 1MHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-76, SOD-323
Supplier Device Package	SOD-323
