Name: SD15
Brand: SMC Diode Solutions
SKU: SD15
Price: 0.25 USD
Availability: InStock

REF: SD15 SMC Diode Solutions

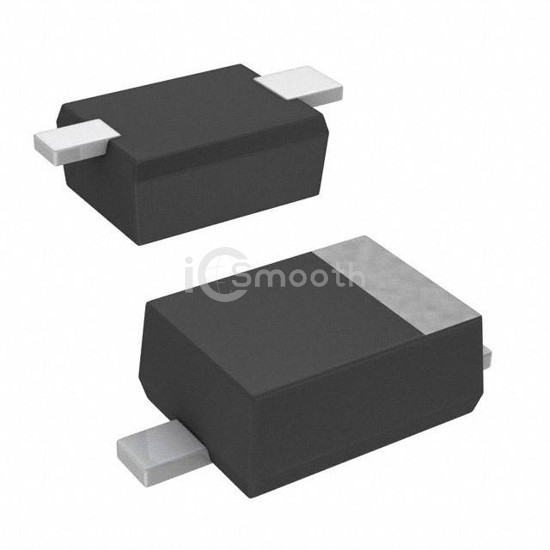

SD15

TVS ARRAY 15V SOD-323

SD15 is a TVS - Diodes manufactured by SMC Diode Solutions. TVS ARRAY 15V SOD-323. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case SC-76, SOD-323.

Datasheet Request a Quote

In Stock: 8,996

Tiered Pricing USD

1+ $0.2500 —

10+ $0.1530 -39%

100+ $0.0949 -62%

500+ $0.0696 -72%

1,000+ $0.0615 -75% BEST

Specifications

16 parameters

Product Status	Active
Type	Zener
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	15V (Max)
Voltage - Breakdown (Min)	16.7V
Voltage - Clamping (Max) @ Ipp	29V
Current - Peak Pulse (10/1000µs)	24A (8/20µs)

Power - Peak Pulse	350W
Power Line Protection	No
Applications	General Purpose
Capacitance @ Frequency	130pF @ 1MHz (Max)
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-76, SOD-323
Supplier Device Package	SOD-323
