Name: SCT855Z
Brand: SMC Diode Solutions
SKU: SCT855Z
Price: 5.60 USD
Availability: InStock

REF: SCT855Z SMC Diode Solutions

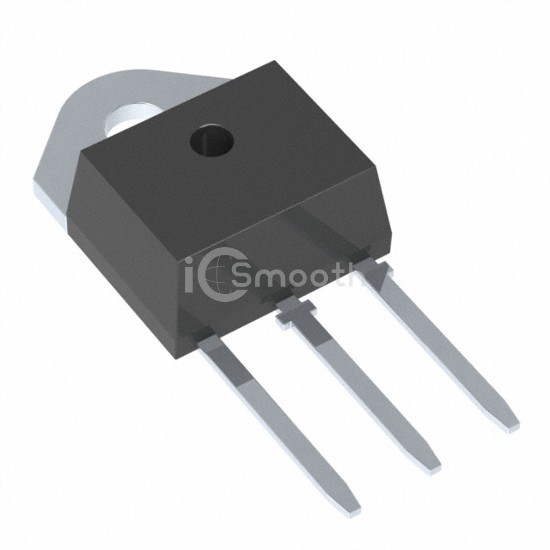

SCT855Z

SCR 800V 55A TO3P

SCT855Z is a Thyristors - SCRs manufactured by SMC Diode Solutions. SCR 800V 55A TO3P. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C (TJ), package / case TO-3P-3, SC-65-3.

Datasheet Request a Quote

In Stock: 428

Tiered Pricing USD

1+ $5.6000 —

30+ $3.1590 -44%

120+ $2.6216 -53%

510+ $2.2275 -60%

1,020+ $2.1316 -62% BEST

Specifications

15 parameters

Product Status	Active
Voltage - Off State	800 V
Voltage - Gate Trigger (Vgt) (Max)	1.5 V
Current - Gate Trigger (Igt) (Max)	50 mA
Voltage - On State (Vtm) (Max)	1.6 V
Current - On State (It (AV)) (Max)	-
Current - On State (It (RMS)) (Max)	55 A
Current - Hold (Ih) (Max)	80 mA

Current - Off State (Max)	10 µA
Current - Non Rep. Surge 50, 60Hz (Itsm)	520A @ 50Hz
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-3P-3, SC-65-3
Supplier Device Package	TO-3P Insulated
