Name: S14C05-8
Brand: SMC Diode Solutions
SKU: S14C05-8
Price: 1.22 USD
Availability: InStock

REF: S14C05-8 SMC Diode Solutions

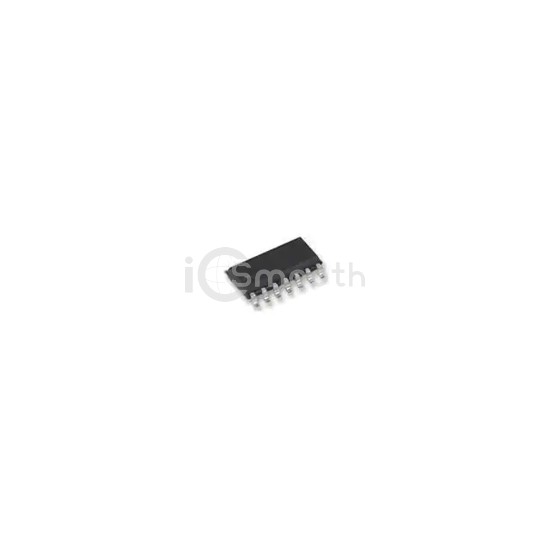

S14C05-8

TVS DIODE 5VWM 9.8VC 14SO

S14C05-8 is a TVS - Diodes manufactured by SMC Diode Solutions. TVS DIODE 5VWM 9.8VC 14SO. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case 14-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 900

Tiered Pricing USD

1+ $1.2200 —

10+ $0.7650 -37%

100+ $0.5038 -59%

500+ $0.3916 -68%

1,000+ $0.3554 -71% BEST

Specifications

16 parameters

Product Status	Active
Type	Steering (Rail to Rail)
Unidirectional Channels	-
Bidirectional Channels	8
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	6V
Voltage - Clamping (Max) @ Ipp	9.8V
Current - Peak Pulse (10/1000µs)	1A (8/20µs)

Power - Peak Pulse	300W
Power Line Protection	Yes
Applications	General Purpose
Capacitance @ Frequency	200pF @ 1MHz (Max)
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	14-SOIC (0.154", 3.90mm Width)
Supplier Device Package	14-SO
