Name: EGUARD0524P
Brand: SMC Diode Solutions
SKU: EGUARD0524P
Price: 0.90 USD
Availability: InStock

REF: EGUARD0524P SMC Diode Solutions

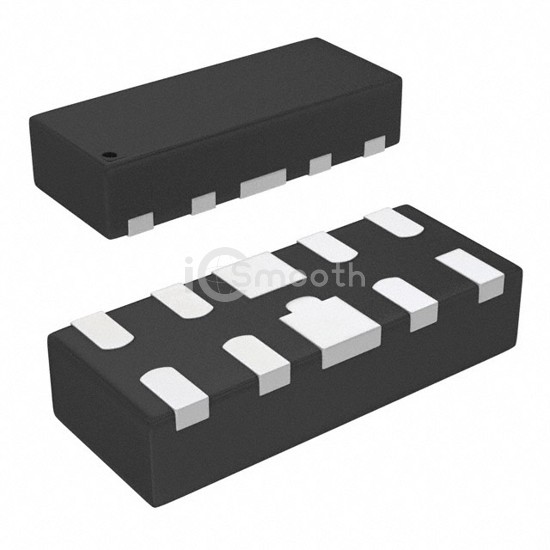

EGUARD0524P

TVS DIODE 5VWM 17VC 10DFNWB

EGUARD0524P is a TVS - Diodes manufactured by SMC Diode Solutions. TVS DIODE 5VWM 17VC 10DFNWB. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 10-UFDFN.

Datasheet Request a Quote

In Stock: 7,830

Tiered Pricing USD

1+ $0.9000 —

10+ $0.5640 -37%

100+ $0.3660 -59%

500+ $0.2809 -69%

1,000+ $0.2535 -72% BEST

Specifications

16 parameters

Product Status	Active
Type	Steering (Rail to Rail)
Unidirectional Channels	4
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	6V
Voltage - Clamping (Max) @ Ipp	17V
Current - Peak Pulse (10/1000µs)	7A (8/20µs)

Power - Peak Pulse	150W
Power Line Protection	No
Applications	HDMI
Capacitance @ Frequency	0.65pF @ 1MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	10-UFDFN
Supplier Device Package	10-DFNWB (2.5x1)
