Name: EGUARD0504F
Brand: SMC Diode Solutions
SKU: EGUARD0504F
Price: 2.11 USD
Availability: InStock

REF: EGUARD0504F SMC Diode Solutions

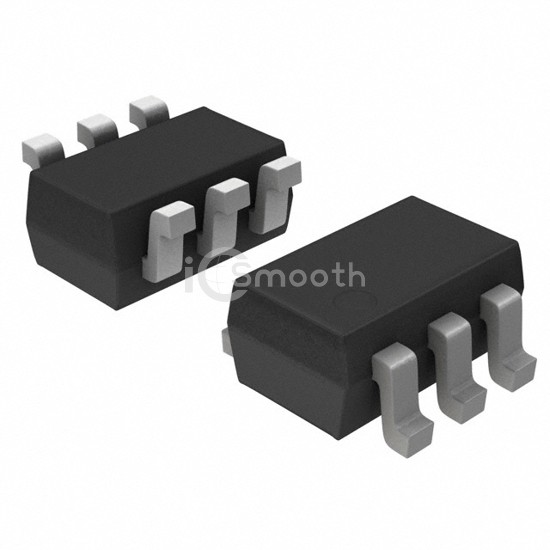

EGUARD0504F

TVS DIODE 5VWM 25VC SOT363

EGUARD0504F is a TVS - Diodes manufactured by SMC Diode Solutions. TVS DIODE 5VWM 25VC SOT363. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case 6-TSSOP, SC-88, SOT-363.

Datasheet Request a Quote

In Stock: 1,074

Tiered Pricing USD

1+ $2.1100 —

10+ $1.3480 -36%

100+ $0.9129 -57%

500+ $0.7267 -66%

1,000+ $0.6669 -68% BEST

Specifications

16 parameters

Product Status	Active
Type	Steering (Rail to Rail)
Unidirectional Channels	4
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	6V
Voltage - Clamping (Max) @ Ipp	25V
Current - Peak Pulse (10/1000µs)	6A (8/20µs)

Power - Peak Pulse	150W
Power Line Protection	Yes
Applications	DVI, HDMI, USB 2.0, USB OTG
Capacitance @ Frequency	3pF @ 1MHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-TSSOP, SC-88, SOT-363
Supplier Device Package	SOT-363
