Name: EGUARD0503F
Brand: SMC Diode Solutions
SKU: EGUARD0503F
Price: 1.82 USD
Availability: InStock

REF: EGUARD0503F SMC Diode Solutions

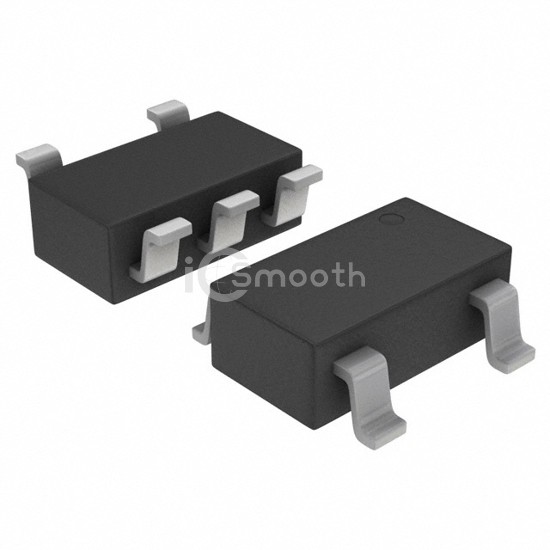

EGUARD0503F

TVS DIODE 5VWM 25VC SOT353

EGUARD0503F is a TVS - Diodes manufactured by SMC Diode Solutions. TVS DIODE 5VWM 25VC SOT353. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case 5-TSSOP, SC-70-5, SOT-353.

Datasheet Request a Quote

In Stock: 2,702

Tiered Pricing USD

1+ $1.8200 —

10+ $1.1590 -36%

100+ $0.7790 -57%

500+ $0.6161 -66%

1,000+ $0.5637 -69% BEST

Specifications

16 parameters

Product Status	Active
Type	Steering (Rail to Rail)
Unidirectional Channels	4
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	5V (Max)
Voltage - Breakdown (Min)	6V
Voltage - Clamping (Max) @ Ipp	25V
Current - Peak Pulse (10/1000µs)	6A (8/20µs)

Power - Peak Pulse	150W
Power Line Protection	Yes
Applications	USB OTG
Capacitance @ Frequency	3pF @ 1MHz
Operating Temperature	-55°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	5-TSSOP, SC-70-5, SOT-353
Supplier Device Package	SOT-353
