1SMA4747

In Stock: 2,157

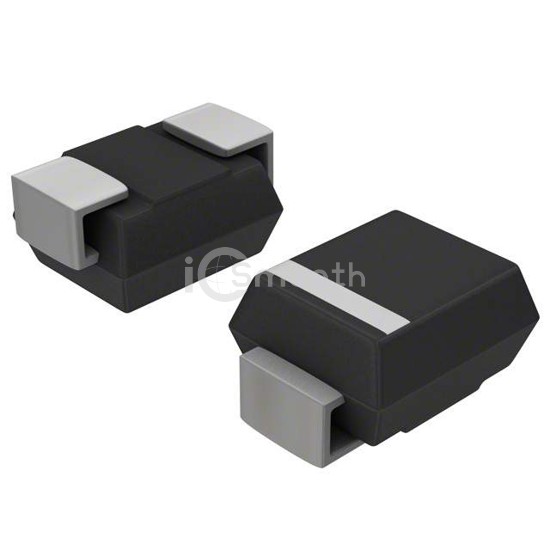

1SMA4747 - SMC Diode Solutions - Diodes - Zener - Single
REF: 1SMA4747 SMC Diode Solutions
1SMA4747

SMC Diode Solutions

DIODE ZENER 20V 1W SMA

1SMA4747 is a Diodes - Zener - Single manufactured by SMC Diode Solutions. DIODE ZENER 20V 1W SMA. Key specifications: mounting type Surface Mount, operating temperature -65°C ~ 150°C, package / case DO-214AC, SMA, power - max 1 W.

Datasheet Request a Quote

In Stock: 2,157

Specifications

11 parameters
Product StatusActive
Voltage - Zener (Nom) (Vz)20 V
Tolerance±5%
Power - Max1 W
Impedance (Max) (Zzt)22 Ohms
Current - Reverse Leakage @ Vr5 µA @ 15.2 V
Voltage - Forward (Vf) (Max) @ If1.2 V @ 200 mA
Operating Temperature-65°C ~ 150°C
Mounting TypeSurface Mount
Package / CaseDO-214AC, SMA
Supplier Device PackageSMA (DO-214AC)
