SMV1236-040LF

In Stock: 1,875

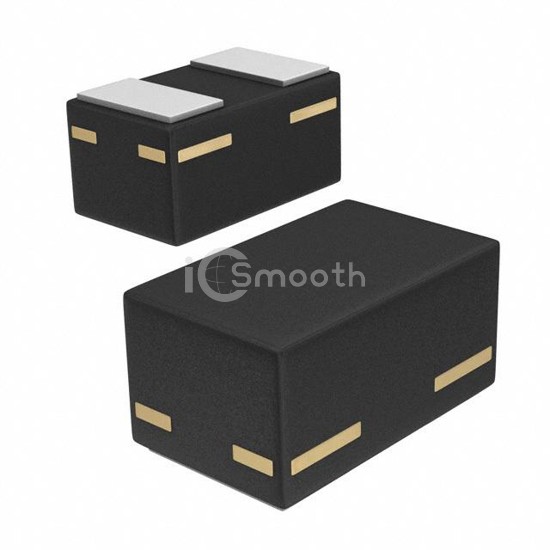

SMV1236-040LF - Skyworks Solutions Inc. - Diodes - Variable Capacitance (Varicaps, Varactors)
REF: SMV1236-040LF Skyworks Solutions Inc.
SMV1236-040LF

Skyworks Solutions Inc.

DIODE VARACTOR 15V 20MA

SMV1236-040LF is a Diodes - Variable Capacitance (Varicaps, Varactors) manufactured by Skyworks Solutions Inc.. DIODE VARACTOR 15V 20MA. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case SOD-882.

Datasheet Request a Quote

In Stock: 1,875

Tiered Pricing USD
3,000+ $0.2584 —
6,000+ $0.2516 -3%
9,000+ $0.2483 -4%
15,000+ $0.2445 -5%
21,000+ $0.2423 -6%
30,000+ $0.2402 -7% BEST

Specifications

11 parameters
Product StatusActive
Capacitance @ Vr, F5.3pF @ 6V, 50MHz
Capacitance Ratio3.5
Capacitance Ratio ConditionC1/C6
Voltage - Peak Reverse (Max)15 V
Diode TypeSingle
Q @ Vr, F-
Operating Temperature-55°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / CaseSOD-882
Supplier Device PackageSOD-882
