SMV1236-011LF

In Stock: 6,050

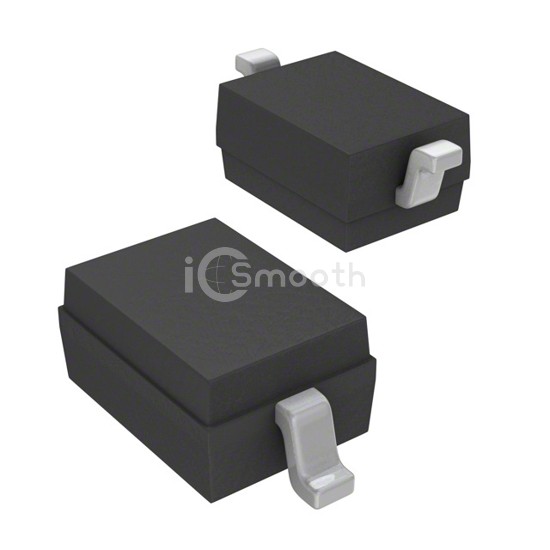

SMV1236-011LF - Skyworks Solutions Inc. - Diodes - Variable Capacitance (Varicaps, Varactors)
REF: SMV1236-011LF Skyworks Solutions Inc.
SMV1236-011LF

Skyworks Solutions Inc.

DIODE VARACTOR 15V 20MA SOD-323

SMV1236-011LF is a Diodes - Variable Capacitance (Varicaps, Varactors) manufactured by Skyworks Solutions Inc.. DIODE VARACTOR 15V 20MA SOD-323. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 125°C (TJ), package / case SC-76, SOD-323.

Datasheet Request a Quote

In Stock: 6,050

Tiered Pricing USD
1+ $1.2700 —
10+ $0.8610 -32%
100+ $0.6892 -46%
500+ $0.5424 -57%
1,000+ $0.4951 -61% BEST

Specifications

11 parameters
Product StatusActive
Capacitance @ Vr, F5.3pF @ 6V, 50MHz
Capacitance Ratio3.5
Capacitance Ratio ConditionC1/C6
Voltage - Peak Reverse (Max)15 V
Diode TypeSingle
Q @ Vr, F-
Operating Temperature-55°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / CaseSC-76, SOD-323
Supplier Device PackageSOD-323
