SMP1304-085LF

In Stock: 2,995

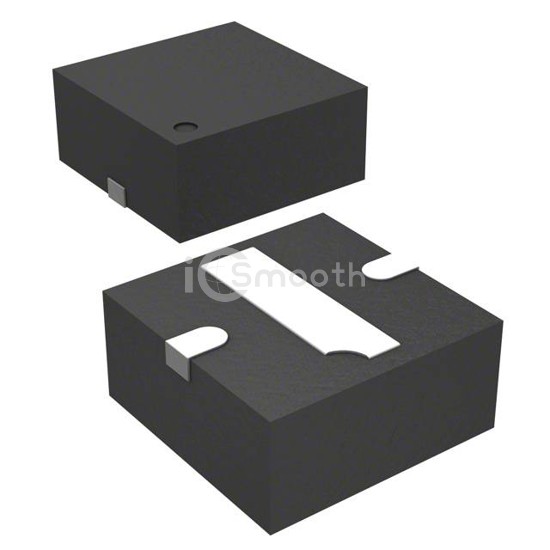

SMP1304-085LF - Skyworks Solutions Inc. - Diodes - RF
REF: SMP1304-085LF Skyworks Solutions Inc.
SMP1304-085LF

Skyworks Solutions Inc.

RF DIODE PIN 200V 2.5W 3QFN

SMP1304-085LF is a Diodes - RF manufactured by Skyworks Solutions Inc.. RF DIODE PIN 200V 2.5W 3QFN. Key specifications: operating temperature -40°C ~ 150°C (TA), package / case 2-VDFN Exposed Pad, current - max 1.5 A.

Datasheet Request a Quote

In Stock: 2,995

Tiered Pricing USD
1+ $17.9200 —
10+ $14.2540 -20%
25+ $13.3372 -26%
100+ $12.3295 -31%
250+ $11.8493 -34%
500+ $11.5599 -35% BEST

Specifications

10 parameters
Product StatusActive
Diode TypePIN - Single
Voltage - Peak Reverse (Max)200V
Current - Max1.5 A
Capacitance @ Vr, F0.3pF @ 30V, 1MHz
Resistance @ If, F2Ohm @ 100mA, 100MHz
Power Dissipation (Max)2.5 W
Operating Temperature-40°C ~ 150°C (TA)
Package / Case2-VDFN Exposed Pad
Supplier Device Package3-QFN (2x2)
