SKY13698-694LF

In Stock: 8,667

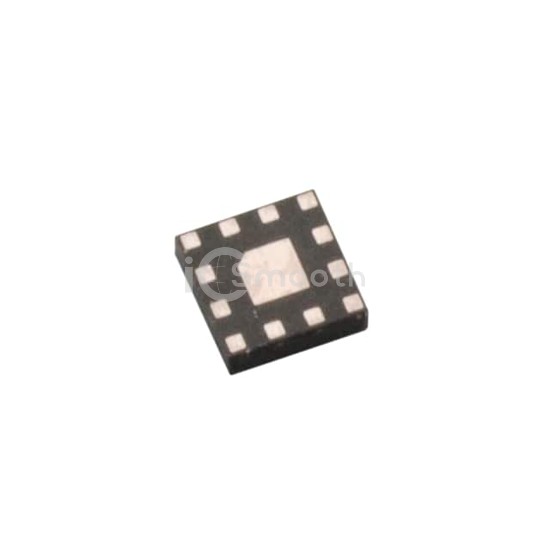

SKY13698-694LF - Skyworks Solutions Inc. - RF Switches
REF: SKY13698-694LF Skyworks Solutions Inc.
SKY13698-694LF

Skyworks Solutions Inc.

LOW INSERTION LOSS ANTENNA SWAP

SKY13698-694LF is a RF Switches manufactured by Skyworks Solutions Inc.. LOW INSERTION LOSS ANTENNA SWAP. Key specifications: voltage - supply 1.35V ~ 2.8V, package / case 12-XFQFN, frequency range 400MHz ~ 5.9GHz, circuit DPDT.

Datasheet Request a Quote

In Stock: 8,667

Tiered Pricing USD
1+ $1.6200 —
10+ $1.1830 -27%
25+ $1.0744 -34%
100+ $0.9554 -41%
250+ $0.8985 -45%
500+ $0.8643 -47%
1,000+ $0.8361 -48% BEST

Specifications

16 parameters
Product StatusActive
RF TypeLTE
TopologyReflective
CircuitDPDT
Frequency Range400MHz ~ 5.9GHz
Isolation30dB
Insertion Loss0.27dB
Test Frequency1GHz, 3.8GHz
P1dB-
IIP3-
FeaturesDC Blocked
Impedance-
Voltage - Supply1.35V ~ 2.8V
Operating Temperature-
Package / Case12-XFQFN
Supplier Device Package12-QFN (1.83x1.83)
