SKY12245-492LF

In Stock: 846

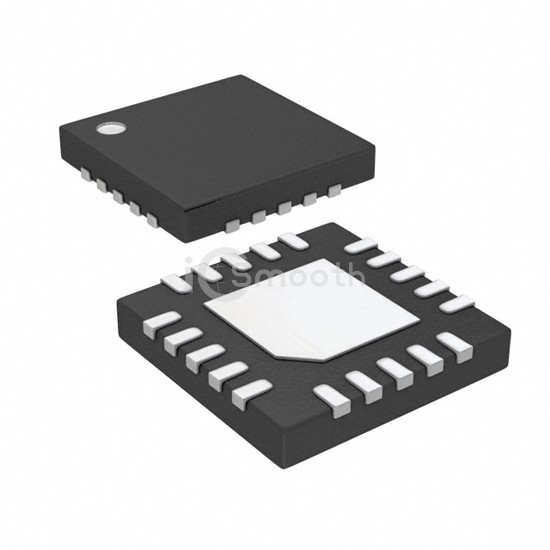

SKY12245-492LF - Skyworks Solutions Inc. - RF Switches
REF: SKY12245-492LF Skyworks Solutions Inc.
SKY12245-492LF

Skyworks Solutions Inc.

0.3 TO 5 GHZ 100 W SPDT SWITCH

SKY12245-492LF is a RF Switches manufactured by Skyworks Solutions Inc.. 0.3 TO 5 GHZ 100 W SPDT SWITCH. Key specifications: voltage - supply 4.5V ~ 5.5V, package / case 20-LQFN Exposed Pad, frequency range 300MHz ~ 5GHz, circuit SPDT.

Datasheet Request a Quote

In Stock: 846

Tiered Pricing USD
1+ $12.5100 —
10+ $9.8330 -21%
25+ $9.1644 -27%
100+ $8.4289 -33%
250+ $8.0784 -35%
500+ $7.9013 -37% BEST

Specifications

16 parameters
Product StatusActive
RF Type3G/4G/5G, LTE
TopologyAbsorptive/Reflective
CircuitSPDT
Frequency Range300MHz ~ 5GHz
Isolation41dB
Insertion Loss0.7dB (max)
Test Frequency4.6GHz
P1dB-
IIP369dBm
Features-
Impedance-
Voltage - Supply4.5V ~ 5.5V
Operating Temperature-
Package / Case20-LQFN Exposed Pad
Supplier Device Package20-QFN (5x5)
