SKY12242-492LF

In Stock: 9,066

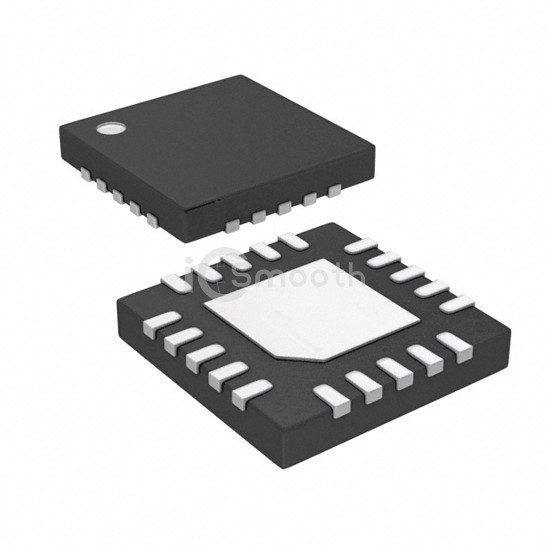

SKY12242-492LF - Skyworks Solutions Inc. - RF Switches
REF: SKY12242-492LF Skyworks Solutions Inc.
SKY12242-492LF

Skyworks Solutions Inc.

INTEGRATED 100W PIN DIODE SPDT

SKY12242-492LF is a RF Switches manufactured by Skyworks Solutions Inc.. INTEGRATED 100W PIN DIODE SPDT. Key specifications: operating temperature -40°C ~ 105°C (TC), voltage - supply 4.5V ~ 5.5V, package / case 20-LQFN Exposed Pad, frequency range 1.8GHz ~ 3GHz.

Datasheet Request a Quote

In Stock: 9,066

Tiered Pricing USD
1+ $12.3600 —
10+ $10.7420 -13%
25+ $10.1804 -18% BEST

Specifications

16 parameters
Product StatusActive
RF TypeLTE
Topology-
CircuitSPDT
Frequency Range1.8GHz ~ 3GHz
Isolation12dB
Insertion Loss0.8dB
Test Frequency3GHz
P1dB38dBm
IIP368dBm
Features-
Impedance50Ohm
Voltage - Supply4.5V ~ 5.5V
Operating Temperature-40°C ~ 105°C (TC)
Package / Case20-LQFN Exposed Pad
Supplier Device Package20-QFN (5x5)
