Name: SI8630BB-B-IS1
Brand: Skyworks Solutions Inc.
SKU: SI8630BB-B-IS1
Price: 3.05 USD
Availability: InStock

REF: SI8630BB-B-IS1 Skyworks Solutions Inc.

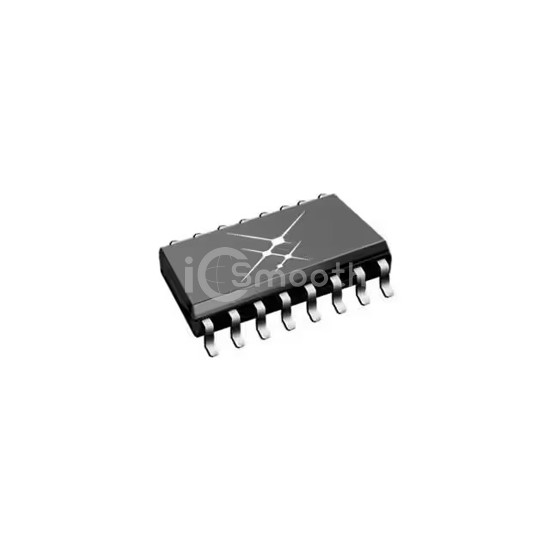

SI8630BB-B-IS1

Skyworks Solutions Inc.

DGTL ISO 2500VRMS 3CH GP 16SOIC

SI8630BB-B-IS1 is a Digital Isolators manufactured by Skyworks Solutions Inc.. DGTL ISO 2500VRMS 3CH GP 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2.5V ~ 5.5V, package / case 16-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 2,377

Tiered Pricing USD

1+ $3.0500 —

10+ $2.2850 -25%

48+ $1.9835 -35%

144+ $1.8391 -40%

288+ $1.7683 -42%

528+ $1.7168 -44%

1,008+ $1.6708 -45%

2,544+ $1.6178 -47%

5,040+ $1.5866 -48% BEST

Specifications

18 parameters

Product Status	Active
Technology	Capacitive Coupling
Type	General Purpose
Isolated Power	No
Number of Channels	3
Inputs - Side 1/Side 2	3/0
Channel Type	Unidirectional
Voltage - Isolation	2500Vrms
Common Mode Transient Immunity (Min)	35kV/µs

Data Rate	150Mbps
Propagation Delay tpLH / tpHL (Max)	13ns, 13ns
Pulse Width Distortion (Max)	4.5ns
Rise / Fall Time (Typ)	2.5ns, 2.5ns
Voltage - Supply	2.5V ~ 5.5V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.154", 3.90mm Width)
Supplier Device Package	16-SOIC
