Name: SI8506-B-IM
Brand: Skyworks Solutions Inc.
SKU: SI8506-B-IM
Availability: InStock

REF: SI8506-B-IM Skyworks Solutions Inc.

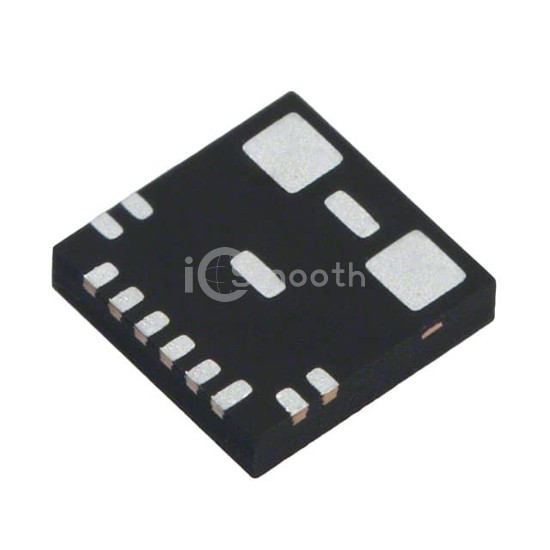

SI8506-B-IM

SENSOR CURRENT XFMR 20A AC

SI8506-B-IM is a Current Sensors manufactured by Skyworks Solutions Inc.. SENSOR CURRENT XFMR 20A AC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2.7V ~ 5.5V, package / case 12-VFQFN.

Datasheet Request a Quote

In Stock: 8,326

Specifications

18 parameters

Product Status	Obsolete
For Measuring	AC
Sensor Type	Transformer w/Conditioning
Current - Sensing	20A
Number of Channels	1
Output	Ratiometric, Voltage
Sensitivity	98mV/A
Frequency	50kHz ~ 1MHz
Linearity	-

Accuracy	±5%
Voltage - Supply	2.7V ~ 5.5V
Response Time	-
Current - Supply (Max)	7mA
Operating Temperature	-40°C ~ 125°C
Polarization	Unidirectional
Mounting Type	Surface Mount
Package / Case	12-VFQFN
Supplier Device Package	12-QFN (4x4)
