SI8505-B-IM

In Stock: 5,683

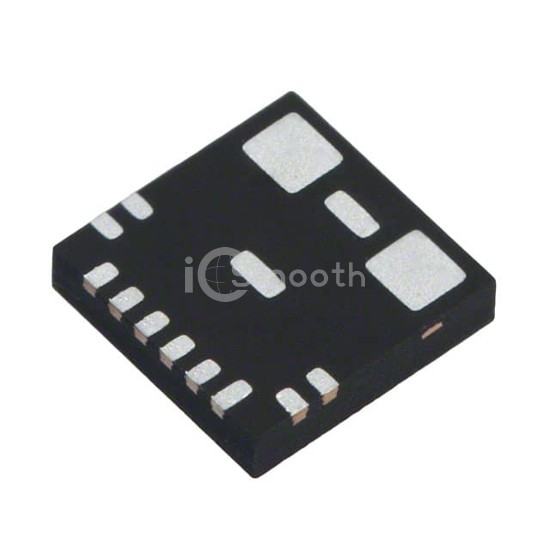

SI8505-B-IM - Skyworks Solutions Inc. - Current Sensors
REF: SI8505-B-IM Skyworks Solutions Inc.
SI8505-B-IM

Skyworks Solutions Inc.

SENSOR CURRENT XFMR 10A AC

SI8505-B-IM is a Current Sensors manufactured by Skyworks Solutions Inc.. SENSOR CURRENT XFMR 10A AC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2.7V ~ 5.5V, package / case 12-VFQFN.

Datasheet Request a Quote

In Stock: 5,683

Specifications

18 parameters
Product StatusObsolete
For MeasuringAC
Sensor TypeTransformer w/Conditioning
Current - Sensing10A
Number of Channels1
OutputRatiometric, Voltage
Sensitivity196mV/A
Frequency50kHz ~ 1MHz
Linearity-
Accuracy±5%
Voltage - Supply2.7V ~ 5.5V
Response Time-
Current - Supply (Max)7mA
Operating Temperature-40°C ~ 125°C
PolarizationUnidirectional
Mounting TypeSurface Mount
Package / Case12-VFQFN
Supplier Device Package12-QFN (4x4)
