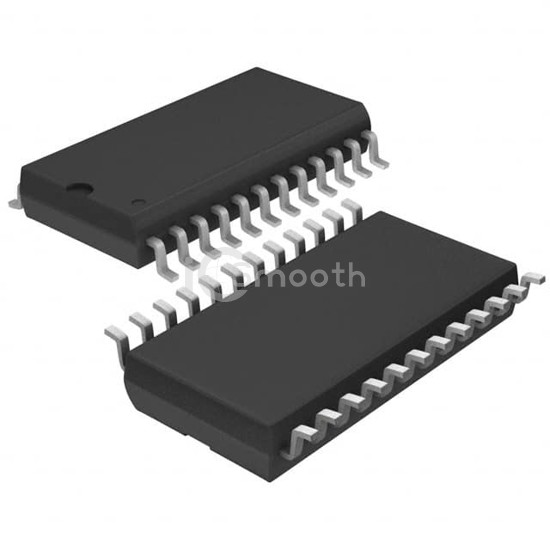

Name: SI8284CC-ISR
Brand: Skyworks Solutions Inc.
SKU: SI8284CC-ISR
Price: 8.07 USD
Availability: InStock

REF: SI8284CC-ISR Skyworks Solutions Inc.

SI8284CC-ISR

Skyworks Solutions Inc.

DGTL ISO 3.75KV 1CH GATE DRVR

SI8284CC-ISR is a Isolators - Gate Drivers manufactured by Skyworks Solutions Inc.. DGTL ISO 3.75KV 1CH GATE DRVR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 24-SOIC (0.295", 7.50mm Width), approval agency CQC, CSA, UL, VDE.

Datasheet Request a Quote

In Stock: 7,042

Tiered Pricing USD

1+ $8.0700 —

10+ $6.2490 -23%

25+ $5.7948 -28%

100+ $5.2949 -34%

250+ $5.0566 -37%

500+ $4.9130 -39% BEST

Specifications

18 parameters

Product Status	Not For New Designs
Technology	Capacitive Coupling
Number of Channels	1
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	35kV/µs
Propagation Delay tpLH / tpHL (Max)	50ns, 50ns
Pulse Width Distortion (Max)	5ns
Rise / Fall Time (Typ)	5.5ns, 8.5ns
Current - Output High, Low	2.5A, 3A

Current - Peak Output	4A
Voltage - Forward (Vf) (Typ)	-
Current - DC Forward (If) (Max)	-
Voltage - Output Supply	2.8V ~ 5.5V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	24-SOIC (0.295", 7.50mm Width)
Supplier Device Package	24-SOIC
Approval Agency	CQC, CSA, UL, VDE
