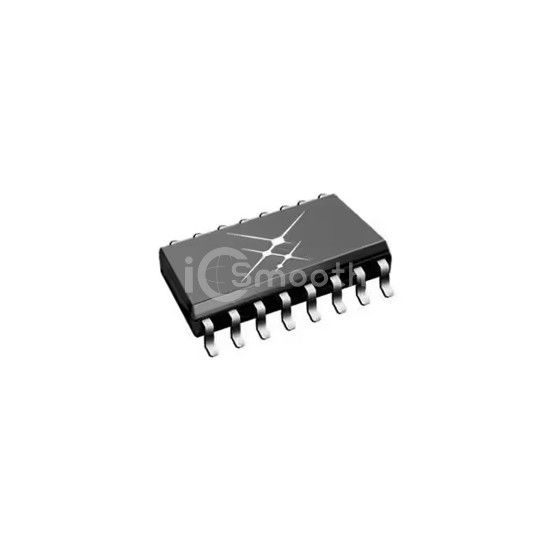

Name: SI8275ABD-IS1
Brand: Skyworks Solutions Inc.
SKU: SI8275ABD-IS1
Price: 4.83 USD
Availability: InStock

REF: SI8275ABD-IS1 Skyworks Solutions Inc.

SI8275ABD-IS1

Skyworks Solutions Inc.

4A 2.5 KV HIGH CMTI DUAL GATE DR

SI8275ABD-IS1 is a Isolators - Gate Drivers manufactured by Skyworks Solutions Inc.. 4A 2.5 KV HIGH CMTI DUAL GATE DR. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 16-SOIC (0.154", 3.90mm Width), approval agency CQC, CSA, UL, VDE.

Datasheet Request a Quote

In Stock: 3,342

Tiered Pricing USD

1+ $4.8300 —

10+ $3.6760 -24%

48+ $3.2223 -33%

144+ $3.0048 -38%

288+ $2.8983 -40%

528+ $2.8208 -42%

1,008+ $2.7514 -43%

2,544+ $2.6716 -45% BEST

Specifications

18 parameters

Product Status	Active
Technology	Capacitive Coupling
Number of Channels	2
Voltage - Isolation	2500Vrms
Common Mode Transient Immunity (Min)	200kV/µs
Propagation Delay tpLH / tpHL (Max)	75ns, 75ns
Pulse Width Distortion (Max)	8ns
Rise / Fall Time (Typ)	10.5ns, 13.3ns
Current - Output High, Low	1.8A, 4A

Current - Peak Output	4A
Voltage - Forward (Vf) (Typ)	-
Current - DC Forward (If) (Max)	-
Voltage - Output Supply	4.2V ~ 30V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.154", 3.90mm Width)
Supplier Device Package	16-SOIC
Approval Agency	CQC, CSA, UL, VDE
