SI8275ABD-IM

In Stock: 2,522

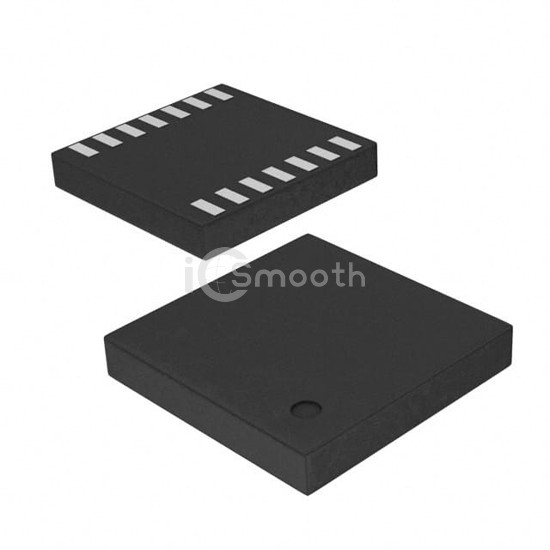

SI8275ABD-IM - Skyworks Solutions Inc. - Isolators - Gate Drivers
REF: SI8275ABD-IM Skyworks Solutions Inc.
SI8275ABD-IM

Skyworks Solutions Inc.

DGTL ISO 2.5KV GATE DRIVER 14LGA

SI8275ABD-IM is a Isolators - Gate Drivers manufactured by Skyworks Solutions Inc.. DGTL ISO 2.5KV GATE DRIVER 14LGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 14-VFLGA, approval agency CQC, CSA, UR, VDE.

Datasheet Request a Quote

In Stock: 2,522

Specifications

18 parameters
Product StatusNot For New Designs
TechnologyCapacitive Coupling
Number of Channels2
Voltage - Isolation2500Vrms
Common Mode Transient Immunity (Min)200kV/µs
Propagation Delay tpLH / tpHL (Max)75ns, 75ns
Pulse Width Distortion (Max)8ns
Rise / Fall Time (Typ)10.5ns, 13.3ns
Current - Output High, Low1.8A, 4A
Current - Peak Output4A
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply4.6V ~ 30V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case14-VFLGA
Supplier Device Package14-LGA (5x5)
Approval AgencyCQC, CSA, UR, VDE
