Name: SI8261BBD-C-IMR
Brand: Skyworks Solutions Inc.
SKU: SI8261BBD-C-IMR
Availability: InStock

REF: SI8261BBD-C-IMR Skyworks Solutions Inc.

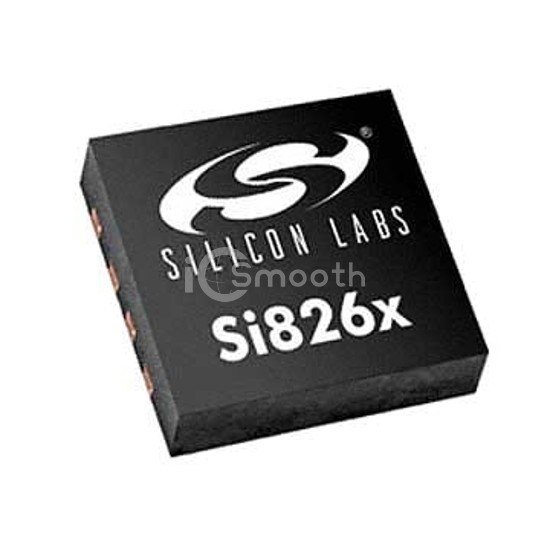

SI8261BBD-C-IMR

DGTL ISO 5KV 1CH GATE DRVR 8LGA

SI8261BBD-C-IMR is a Isolators - Gate Drivers manufactured by Skyworks Solutions Inc.. DGTL ISO 5KV 1CH GATE DRVR 8LGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - forward (vf) (typ) 2.8V (Max), package / case 8-VELGA.

Datasheet Request a Quote

In Stock: 6,909

Specifications

18 parameters

Product Status	Obsolete
Technology	Capacitive Coupling
Number of Channels	1
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	35kV/µs
Propagation Delay tpLH / tpHL (Max)	60ns, 50ns
Pulse Width Distortion (Max)	28ns
Rise / Fall Time (Typ)	5.5ns, 8.5ns
Current - Output High, Low	500mA, 1.2A

Current - Peak Output	4A
Voltage - Forward (Vf) (Typ)	2.8V (Max)
Current - DC Forward (If) (Max)	30 mA
Voltage - Output Supply	9.4V ~ 30V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	8-VELGA
Supplier Device Package	8-LGA (10x12.5)
Approval Agency	CQC, CSA, UR, VDE
