Name: SI8261AAD-C-IS
Brand: Skyworks Solutions Inc.
SKU: SI8261AAD-C-IS
Price: 3.67 USD
Availability: InStock

REF: SI8261AAD-C-IS Skyworks Solutions Inc.

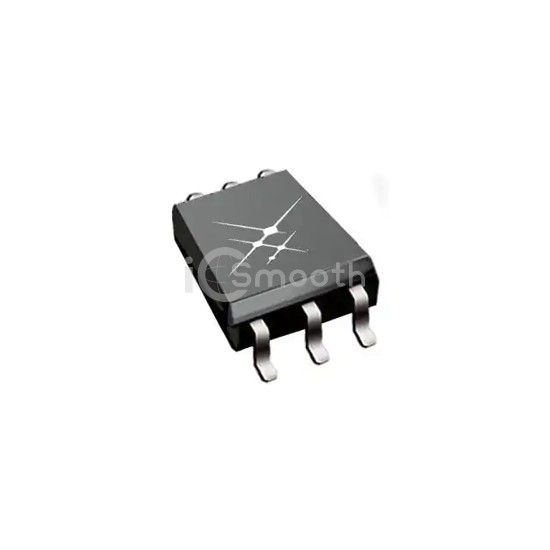

SI8261AAD-C-IS

Skyworks Solutions Inc.

DGTL ISO 5KV 1CH GATE DRVR 6SDIP

SI8261AAD-C-IS is a Isolators - Gate Drivers manufactured by Skyworks Solutions Inc.. DGTL ISO 5KV 1CH GATE DRVR 6SDIP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - forward (vf) (typ) 2.8V (Max), package / case 6-SOIC (0.295", 7.50mm Width).

Datasheet Request a Quote

In Stock: 5,187

Tiered Pricing USD

1+ $3.6700 —

10+ $2.7650 -25%

25+ $2.5392 -31%

100+ $2.2907 -38%

300+ $2.1521 -41%

500+ $2.1008 -43%

1,000+ $2.0421 -44%

2,500+ $1.9801 -46%

5,000+ $1.9427 -47% BEST

Specifications

18 parameters

Product Status	Active
Technology	Capacitive Coupling
Number of Channels	1
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	35kV/µs
Propagation Delay tpLH / tpHL (Max)	60ns, 50ns
Pulse Width Distortion (Max)	28ns
Rise / Fall Time (Typ)	5.5ns, 8.5ns
Current - Output High, Low	400mA, 600mA

Current - Peak Output	600mA
Voltage - Forward (Vf) (Typ)	2.8V (Max)
Current - DC Forward (If) (Max)	30 mA
Voltage - Output Supply	6.5V ~ 30V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	6-SOIC (0.295", 7.50mm Width)
Supplier Device Package	6-SDIP Gull Wing
Approval Agency	CQC, CSA, UR, VDE
