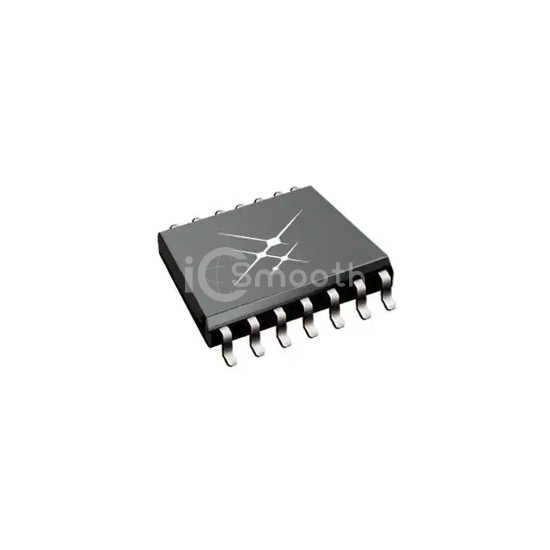

Name: SI823H4BD-IS3
Brand: Skyworks Solutions Inc.
SKU: SI823H4BD-IS3
Price: 6.74 USD
Availability: InStock

REF: SI823H4BD-IS3 Skyworks Solutions Inc.

SI823H4BD-IS3

Skyworks Solutions Inc.

5KV GATE DRIVER 14-WBSOIC

SI823H4BD-IS3 is a Isolators - Gate Drivers manufactured by Skyworks Solutions Inc.. 5KV GATE DRIVER 14-WBSOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 14-SOIC (0.295", 7.50mm Width), approval agency CQC, CSA, UL, VDE.

Datasheet Request a Quote

In Stock: 46

Tiered Pricing USD

1+ $6.7400 —

10+ $5.1850 -23%

46+ $4.5898 -32%

138+ $4.2942 -36%

276+ $4.1495 -38%

506+ $4.0442 -40%

1,012+ $3.9437 -41%

2,530+ $3.8377 -43% BEST

Specifications

18 parameters

Product Status	Active
Technology	Capacitive Coupling
Number of Channels	1
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	125kV/µs
Propagation Delay tpLH / tpHL (Max)	30ns, 30ns
Pulse Width Distortion (Max)	5ns
Rise / Fall Time (Typ)	12ns, 12ns (Max)
Current - Output High, Low	4A, 4A

Current - Peak Output	6A
Voltage - Forward (Vf) (Typ)	-
Current - DC Forward (If) (Max)	-
Voltage - Output Supply	5.5V ~ 30V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	14-SOIC (0.295", 7.50mm Width)
Supplier Device Package	14-SOIC
Approval Agency	CQC, CSA, UL, VDE
