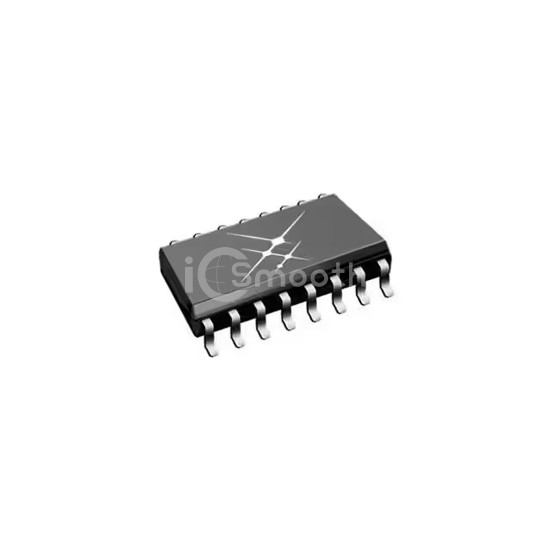

Name: SI823H2CB-IS1
Brand: Skyworks Solutions Inc.
SKU: SI823H2CB-IS1
Price: 4.19 USD
Availability: InStock

REF: SI823H2CB-IS1 Skyworks Solutions Inc.

SI823H2CB-IS1

Skyworks Solutions Inc.

2.5KV DUAL GATE DRIVERS, LOW PRO

SI823H2CB-IS1 is a Isolators - Gate Drivers manufactured by Skyworks Solutions Inc.. 2.5KV DUAL GATE DRIVERS, LOW PRO. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 16-SOIC (0.154", 3.90mm Width), approval agency CQC, CSA, UL, VDE.

Datasheet Request a Quote

In Stock: 9,869

Specifications

18 parameters

Product Status	Active
Technology	Capacitive Coupling
Number of Channels	2
Voltage - Isolation	2500Vrms
Common Mode Transient Immunity (Min)	125kV/µs
Propagation Delay tpLH / tpHL (Max)	30ns, 58ns
Pulse Width Distortion (Max)	5ns
Rise / Fall Time (Typ)	12ns, 12ns
Current - Output High, Low	4A, 4A

Current - Peak Output	6A
Voltage - Forward (Vf) (Typ)	-
Current - DC Forward (If) (Max)	-
Voltage - Output Supply	5.5V ~ 30V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.154", 3.90mm Width)
Supplier Device Package	16-SOIC
Approval Agency	CQC, CSA, UL, VDE
