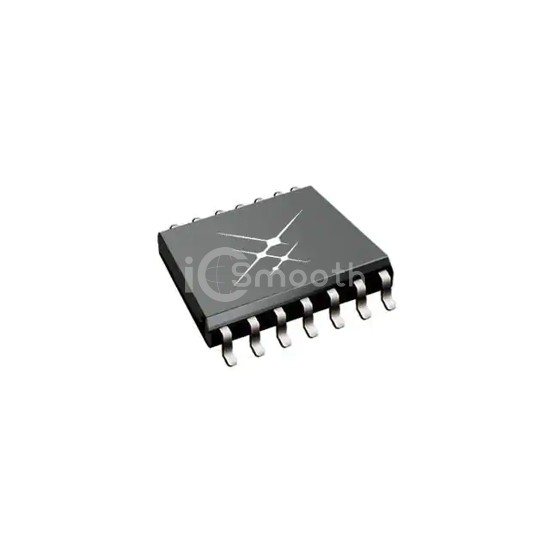

Name: SI82398CD-IS3
Brand: Skyworks Solutions Inc.
SKU: SI82398CD-IS3
Price: 5.81 USD
Availability: InStock

REF: SI82398CD-IS3 Skyworks Solutions Inc.

SI82398CD-IS3

Skyworks Solutions Inc.

5 KV 12 V UVLO HS/LS ISOLATED GA

SI82398CD-IS3 is a Isolators - Gate Drivers manufactured by Skyworks Solutions Inc.. 5 KV 12 V UVLO HS/LS ISOLATED GA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 14-SOIC (0.295", 7.50mm Width), approval agency CQC, CSA, UR, VDE.

Datasheet Request a Quote

In Stock: 7,328

Tiered Pricing USD

1+ $5.8100 —

10+ $4.4520 -23%

46+ $3.9291 -32%

138+ $3.6696 -37%

276+ $3.5426 -39%

506+ $3.4502 -41%

1,012+ $3.3620 -42%

2,530+ $3.2690 -44% BEST

Specifications

18 parameters

Product Status	Active
Technology	Capacitive Coupling
Number of Channels	2
Voltage - Isolation	3250Vrms
Common Mode Transient Immunity (Min)	35kV/µs
Propagation Delay tpLH / tpHL (Max)	55ns, 40ns
Pulse Width Distortion (Max)	5.6ns
Rise / Fall Time (Typ)	12ns, 12ns (Max)
Current - Output High, Low	2A, 4A

Current - Peak Output	4A
Voltage - Forward (Vf) (Typ)	-
Current - DC Forward (If) (Max)	-
Voltage - Output Supply	12.8V ~ 24V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	14-SOIC (0.295", 7.50mm Width)
Supplier Device Package	14-SOIC
Approval Agency	CQC, CSA, UR, VDE
