SI82392BB-IS1R

In Stock: 9,595

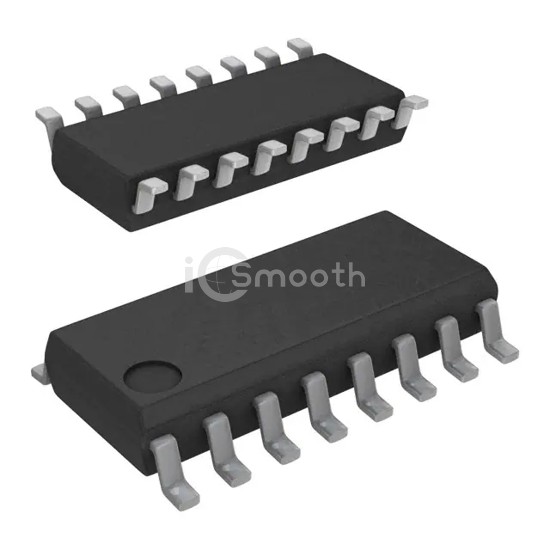

SI82392BB-IS1R - Skyworks Solutions Inc. - Isolators - Gate Drivers
REF: SI82392BB-IS1R Skyworks Solutions Inc.
SI82392BB-IS1R

Skyworks Solutions Inc.

2.5KV 4A DUAL CHANNEL ISOLATED D

SI82392BB-IS1R is a Isolators - Gate Drivers manufactured by Skyworks Solutions Inc.. 2.5KV 4A DUAL CHANNEL ISOLATED D. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 16-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 9,595

Specifications

18 parameters
Product StatusActive
TechnologyCapacitive Coupling
Number of Channels2
Voltage - Isolation2500Vrms
Common Mode Transient Immunity (Min)100kV/µs
Propagation Delay tpLH / tpHL (Max)40ns, 40ns
Pulse Width Distortion (Max)5.6ns
Rise / Fall Time (Typ)12ns, 12ns
Current - Output High, Low2A, 4A
Current - Peak Output4A
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply10V ~ 24V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case16-SOIC (0.154", 3.90mm Width)
Supplier Device Package16-SOIC
Approval Agency-
