Name: SI8236BA-D-IM
Brand: Skyworks Solutions Inc.
SKU: SI8236BA-D-IM
Availability: InStock

REF: SI8236BA-D-IM Skyworks Solutions Inc.

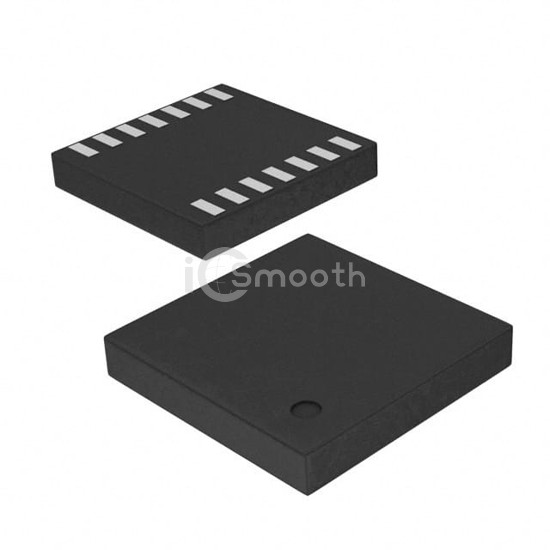

SI8236BA-D-IM

DGTL ISO 1KV 2CH GATE DRVR 14LGA

SI8236BA-D-IM is a Isolators - Gate Drivers manufactured by Skyworks Solutions Inc.. DGTL ISO 1KV 2CH GATE DRVR 14LGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 14-VFLGA, approval agency CQC, CSA, UR, VDE.

Datasheet Request a Quote

In Stock: 6,583

Specifications

18 parameters

Product Status	Obsolete
Technology	Capacitive Coupling
Number of Channels	2
Voltage - Isolation	1000Vrms
Common Mode Transient Immunity (Min)	20kV/µs
Propagation Delay tpLH / tpHL (Max)	60ns, 60ns
Pulse Width Distortion (Max)	5.6ns
Rise / Fall Time (Typ)	12ns, 12ns (Max)
Current - Output High, Low	2A, 4A

Current - Peak Output	4A
Voltage - Forward (Vf) (Typ)	-
Current - DC Forward (If) (Max)	-
Voltage - Output Supply	6.5V ~ 24V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	14-VFLGA
Supplier Device Package	14-LGA (5x5)
Approval Agency	CQC, CSA, UR, VDE
