Name: SI8235BB-D-IM1R
Brand: Skyworks Solutions Inc.
SKU: SI8235BB-D-IM1R
Price: 3.05 USD
Availability: InStock

REF: SI8235BB-D-IM1R Skyworks Solutions Inc.

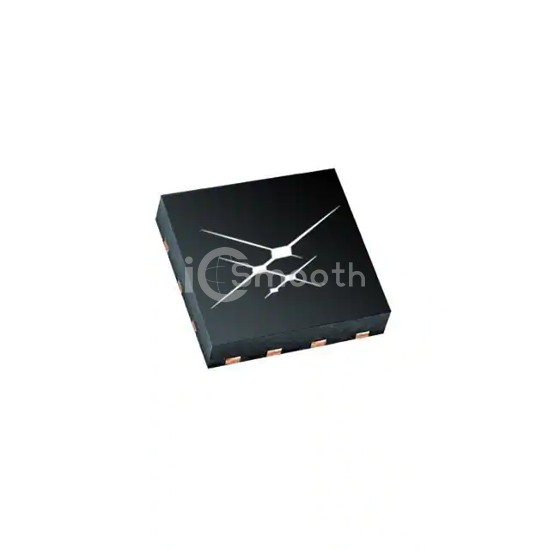

SI8235BB-D-IM1R

Skyworks Solutions Inc.

DUAL ISOLATED GATE DRIVER

SI8235BB-D-IM1R is a Isolators - Gate Drivers manufactured by Skyworks Solutions Inc.. DUAL ISOLATED GATE DRIVER. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 14-VDFN, approval agency CQC, CSA, UR, VDE.

Datasheet Request a Quote

In Stock: 8,665

Specifications

18 parameters

Product Status	Active
Technology	Capacitive Coupling
Number of Channels	2
Voltage - Isolation	2500Vrms
Common Mode Transient Immunity (Min)	45kV/µs
Propagation Delay tpLH / tpHL (Max)	60ns, 60ns
Pulse Width Distortion (Max)	5.6ns
Rise / Fall Time (Typ)	12ns, 12ns
Current - Output High, Low	2A, 4A

Current - Peak Output	4A
Voltage - Forward (Vf) (Typ)	-
Current - DC Forward (If) (Max)	-
Voltage - Output Supply	6.5V ~ 24V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	14-VDFN
Supplier Device Package	14-QFN (5x5)
Approval Agency	CQC, CSA, UR, VDE
