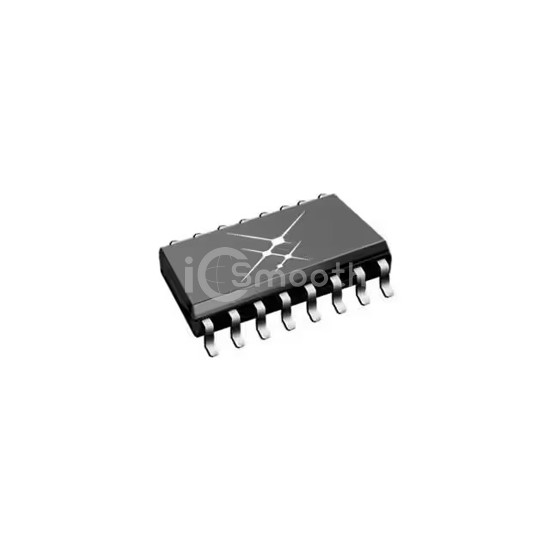

Name: SI8234BB-D-IS1
Brand: Skyworks Solutions Inc.
SKU: SI8234BB-D-IS1
Price: 4.11 USD
Availability: InStock

REF: SI8234BB-D-IS1 Skyworks Solutions Inc.

SI8234BB-D-IS1

Skyworks Solutions Inc.

DGTL ISO 2.5KV GATE DRVR 16SOIC

SI8234BB-D-IS1 is a Isolators - Gate Drivers manufactured by Skyworks Solutions Inc.. DGTL ISO 2.5KV GATE DRVR 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 16-SOIC (0.154", 3.90mm Width), approval agency CQC, CSA, UR, VDE.

Datasheet Request a Quote

In Stock: 8,798

Tiered Pricing USD

1+ $4.1100 —

10+ $3.1240 -24%

48+ $2.7390 -33%

144+ $2.5541 -38%

288+ $2.4636 -40%

528+ $2.4625 -40% BEST

Specifications

18 parameters

Product Status	Active
Technology	Capacitive Coupling
Number of Channels	2
Voltage - Isolation	2500Vrms
Common Mode Transient Immunity (Min)	20kV/µs
Propagation Delay tpLH / tpHL (Max)	60ns, 60ns
Pulse Width Distortion (Max)	5.6ns
Rise / Fall Time (Typ)	12ns, 12ns (Max)
Current - Output High, Low	2A, 4A

Current - Peak Output	4A
Voltage - Forward (Vf) (Typ)	-
Current - DC Forward (If) (Max)	-
Voltage - Output Supply	9.4V ~ 24V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.154", 3.90mm Width)
Supplier Device Package	16-SOIC
Approval Agency	CQC, CSA, UR, VDE
