SI8234BB-C-IMR

In Stock: 1,402

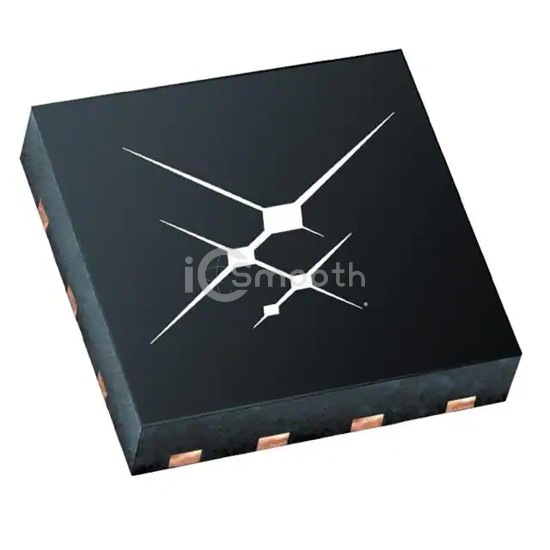

SI8234BB-C-IMR - Skyworks Solutions Inc. - Isolators - Gate Drivers
REF: SI8234BB-C-IMR Skyworks Solutions Inc.
SI8234BB-C-IMR

Skyworks Solutions Inc.

DGTL ISO 2.5KV GATE DRIVER 14LGA

SI8234BB-C-IMR is a Isolators - Gate Drivers manufactured by Skyworks Solutions Inc.. DGTL ISO 2.5KV GATE DRIVER 14LGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 14-VFLGA, approval agency CQC, CSA, UR, VDE.

Datasheet Request a Quote

In Stock: 1,402

Specifications

18 parameters
Product StatusObsolete
TechnologyCapacitive Coupling
Number of Channels2
Voltage - Isolation2500Vrms
Common Mode Transient Immunity (Min)20kV/µs
Propagation Delay tpLH / tpHL (Max)60ns, 60ns
Pulse Width Distortion (Max)5.6ns
Rise / Fall Time (Typ)12ns, 12ns (Max)
Current - Output High, Low2A, 4A
Current - Peak Output4A
Voltage - Forward (Vf) (Typ)-
Current - DC Forward (If) (Max)-
Voltage - Output Supply9.4V ~ 24V
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Package / Case14-VFLGA
Supplier Device Package14-LGA (5x5)
Approval AgencyCQC, CSA, UR, VDE
