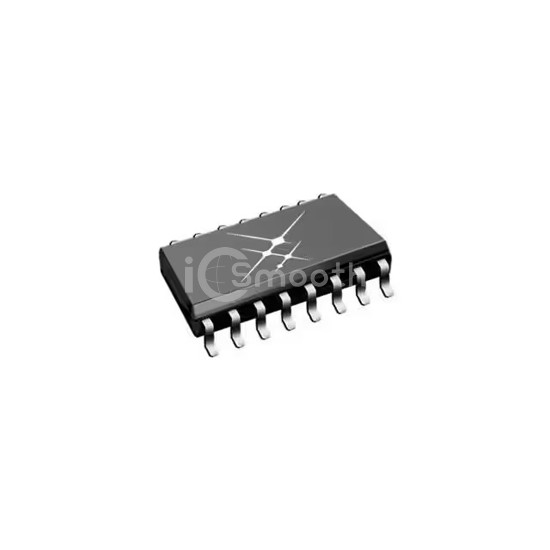

Name: SI8231BC-D-IS1
Brand: Skyworks Solutions Inc.
SKU: SI8231BC-D-IS1
Price: 3.71 USD
Availability: InStock

REF: SI8231BC-D-IS1 Skyworks Solutions Inc.

SI8231BC-D-IS1

Skyworks Solutions Inc.

DGTL ISO 3.75KV GATE DRVR 16SOIC

SI8231BC-D-IS1 is a Isolators - Gate Drivers manufactured by Skyworks Solutions Inc.. DGTL ISO 3.75KV GATE DRVR 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 16-SOIC (0.154", 3.90mm Width), approval agency CQC, CSA, UR, VDE.

Datasheet Request a Quote

In Stock: 2,537

Tiered Pricing USD

1+ $3.7100 —

10+ $2.8000 -25%

48+ $2.4417 -34%

144+ $2.2694 -39%

288+ $2.1852 -41%

528+ $2.1238 -43%

1,008+ $2.0689 -44%

2,544+ $2.0057 -46%

5,040+ $1.9686 -47% BEST

Specifications

18 parameters

Product Status	Active
Technology	Capacitive Coupling
Number of Channels	2
Voltage - Isolation	3750Vrms
Common Mode Transient Immunity (Min)	20kV/µs
Propagation Delay tpLH / tpHL (Max)	45ns, 45ns
Pulse Width Distortion (Max)	5.6ns
Rise / Fall Time (Typ)	20ns, 20ns (Max)
Current - Output High, Low	250mA, 500mA

Current - Peak Output	500mA
Voltage - Forward (Vf) (Typ)	-
Current - DC Forward (If) (Max)	-
Voltage - Output Supply	6.5V ~ 24V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.154", 3.90mm Width)
Supplier Device Package	16-SOIC
Approval Agency	CQC, CSA, UR, VDE
