Name: SI8231BB-D-IS1R
Brand: Skyworks Solutions Inc.
SKU: SI8231BB-D-IS1R
Price: 3.71 USD
Availability: InStock

REF: SI8231BB-D-IS1R Skyworks Solutions Inc.

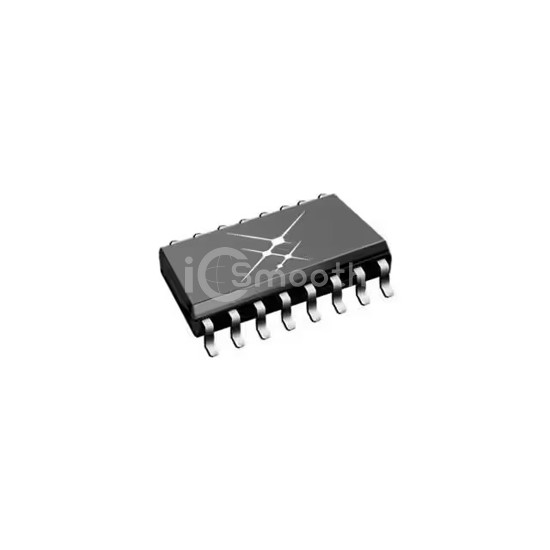

SI8231BB-D-IS1R

Skyworks Solutions Inc.

DGTL ISO 2.5KV GATE DRVR 16SOIC

SI8231BB-D-IS1R is a Isolators - Gate Drivers manufactured by Skyworks Solutions Inc.. DGTL ISO 2.5KV GATE DRVR 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 16-SOIC (0.154", 3.90mm Width), approval agency CQC, CSA, UR, VDE.

Datasheet Request a Quote

In Stock: 9,064

Tiered Pricing USD

1+ $3.7100 —

10+ $2.8000 -25%

25+ $2.5720 -31%

100+ $2.3208 -37%

250+ $2.2011 -41%

500+ $2.1289 -43%

1,000+ $2.0695 -44% BEST

Specifications

18 parameters

Product Status	Active
Technology	Capacitive Coupling
Number of Channels	2
Voltage - Isolation	2500Vrms
Common Mode Transient Immunity (Min)	20kV/µs
Propagation Delay tpLH / tpHL (Max)	60ns, 60ns
Pulse Width Distortion (Max)	5.6ns
Rise / Fall Time (Typ)	20ns, 20ns (Max)
Current - Output High, Low	250mA, 500mA

Current - Peak Output	500mA
Voltage - Forward (Vf) (Typ)	-
Current - DC Forward (If) (Max)	-
Voltage - Output Supply	9.4V ~ 24V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.154", 3.90mm Width)
Supplier Device Package	16-SOIC
Approval Agency	CQC, CSA, UR, VDE
