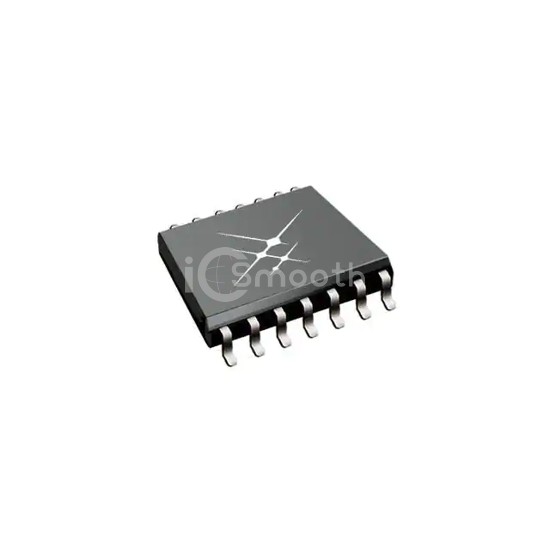

Name: SI8230BD-D-IS3
Brand: Skyworks Solutions Inc.
SKU: SI8230BD-D-IS3
Price: 4.98 USD
Availability: InStock

REF: SI8230BD-D-IS3 Skyworks Solutions Inc.

SI8230BD-D-IS3

Skyworks Solutions Inc.

ISOLATED GATE DRIVER, 8 MM CREEP

SI8230BD-D-IS3 is a Isolators - Gate Drivers manufactured by Skyworks Solutions Inc.. ISOLATED GATE DRIVER, 8 MM CREEP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 14-SOIC (0.295", 7.50mm Width), approval agency CQC, CSA, UR, VDE.

Datasheet Request a Quote

In Stock: 9,657

Tiered Pricing USD

1+ $4.9800 —

10+ $3.7970 -24%

46+ $3.3409 -33%

138+ $3.1146 -37%

276+ $3.0038 -40%

506+ $2.9231 -41%

1,012+ $2.8462 -43%

2,530+ $2.7650 -44% BEST

Specifications

18 parameters

Product Status	Active
Technology	Capacitive Coupling
Number of Channels	2
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	45kV/µs
Propagation Delay tpLH / tpHL (Max)	60ns, 60ns
Pulse Width Distortion (Max)	5.6ns
Rise / Fall Time (Typ)	20ns, 20ns
Current - Output High, Low	250mA, 500mA

Current - Peak Output	500mA
Voltage - Forward (Vf) (Typ)	-
Current - DC Forward (If) (Max)	-
Voltage - Output Supply	6.5V ~ 24V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	14-SOIC (0.295", 7.50mm Width)
Supplier Device Package	14-SOIC
Approval Agency	CQC, CSA, UR, VDE
