AAT4901IJS-3-T1

In Stock: 9,434

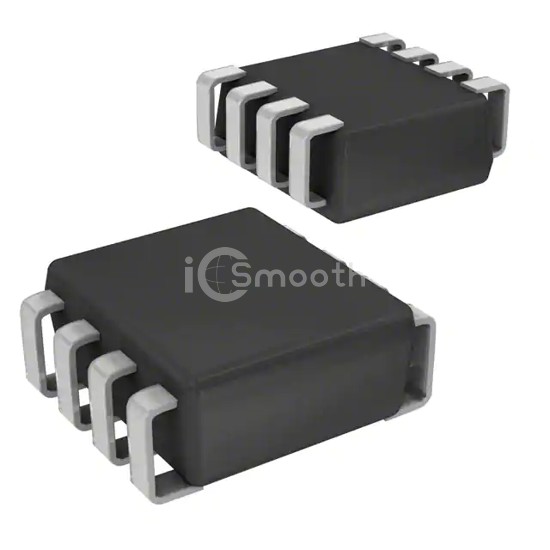

AAT4901IJS-3-T1 - Skyworks Solutions Inc. - PMIC - Full, Half-Bridge Drivers
REF: AAT4901IJS-3-T1 Skyworks Solutions Inc.
AAT4901IJS-3-T1

Skyworks Solutions Inc.

IC DRIVER GATE HALF BRIDGE SC70

AAT4901IJS-3-T1 is a PMIC - Full, Half-Bridge Drivers manufactured by Skyworks Solutions Inc.. IC DRIVER GATE HALF BRIDGE SC70. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 2V ~ 5.5V, package / case 8-TFSOJ (0.069", 1.75mm Width).

Datasheet Request a Quote

In Stock: 9,434

Specifications

17 parameters
Product StatusObsolete
Output ConfigurationHalf Bridge (2)
ApplicationsDC Motors, Solenoids, Transformers
InterfaceLogic
Load TypeInductive
TechnologyPower MOSFET
Rds On (Typ)200mOhm LS, 240mOhm HS
Current - Output / Channel700mA
Current - Peak Output3A
Voltage - Supply2V ~ 5.5V
Voltage - Load2V ~ 5.5V
Operating Temperature-40°C ~ 150°C (TJ)
Features-
Fault ProtectionOver Temperature, Shoot-Through
Mounting TypeSurface Mount
Package / Case8-TFSOJ (0.069", 1.75mm Width)
Supplier Device Package8-SC70JW
