Name: AAT3242ITP-QN-T1
Brand: Skyworks Solutions Inc.
SKU: AAT3242ITP-QN-T1
Availability: InStock

REF: AAT3242ITP-QN-T1 Skyworks Solutions Inc.

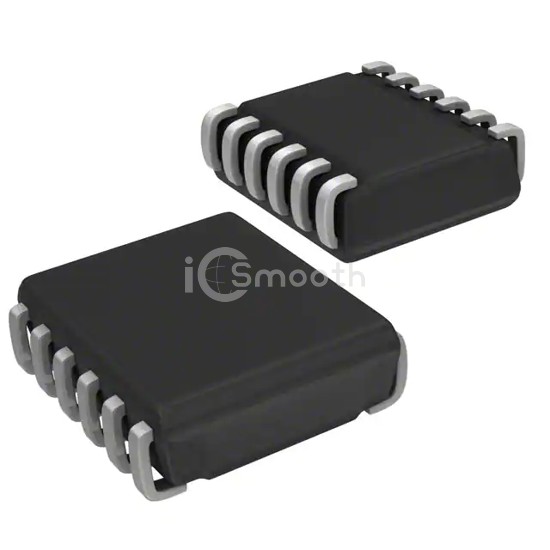

AAT3242ITP-QN-T1

IC REG LINEAR 2.8V/2.5V 12TSOPJW

AAT3242ITP-QN-T1 is a PMIC - Voltage Regulators - Linear manufactured by Skyworks Solutions Inc.. IC REG LINEAR 2.8V/2.5V 12TSOPJW. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), package / case 12-TFSOJ (0.094", 2.40mm Width), current - output 300mA, 150mA.

Datasheet Request a Quote

In Stock: 5,115

Specifications

18 parameters

Product Status	Obsolete
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	2
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	2.8V, 2.5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.6V @ 300mA, 0.3V @ 150mA
Current - Output	300mA, 150mA

Current - Quiescent (Iq)	-
Current - Supply (Max)	-
PSRR	65dB ~ 42dB (1kHz ~ 1MHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	12-TFSOJ (0.094", 2.40mm Width)
Supplier Device Package	12-TSOPJW
