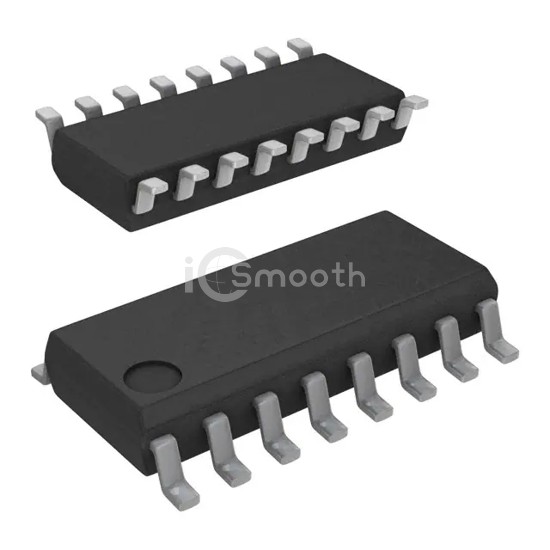

Name: TSM984ESE+
Brand: Silicon Labs
SKU: TSM984ESE+
Availability: InStock

REF: TSM984ESE+ Silicon Labs

TSM984ESE+

IC COMPARATOR QUAD O-D 16SOIC

TSM984ESE+ is a Linear - Comparators manufactured by Silicon Labs. IC COMPARATOR QUAD O-D 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 16-SOIC (0.154", 3.90mm Width), output type CMOS, TTL.

Datasheet Request a Quote

In Stock: 5,524

Specifications

16 parameters

Product Status	Obsolete
Type	with Voltage Reference
Number of Elements	4
Output Type	CMOS, TTL
Voltage - Supply, Single/Dual (±)	2.5V ~ 11V, ±1.25V ~ 5.5V
Voltage - Input Offset (Max)	10mV @ 2.5V
Current - Input Bias (Max)	0.005µA @ 2.5V
Current - Output (Typ)	40mA

Current - Quiescent (Max)	8.5µA
CMRR, PSRR (Typ)	80dB CMRR, 80dB PSRR
Propagation Delay (Max)	12µs
Hysteresis	50mV
Operating Temperature	-40°C ~ 85°C
Package / Case	16-SOIC (0.154", 3.90mm Width)
Mounting Type	Surface Mount
Supplier Device Package	16-SOIC
