Name: TSM924ESE+T
Brand: Silicon Labs
SKU: TSM924ESE+T
Availability: InStock

REF: TSM924ESE+T Silicon Labs

TSM924ESE+T

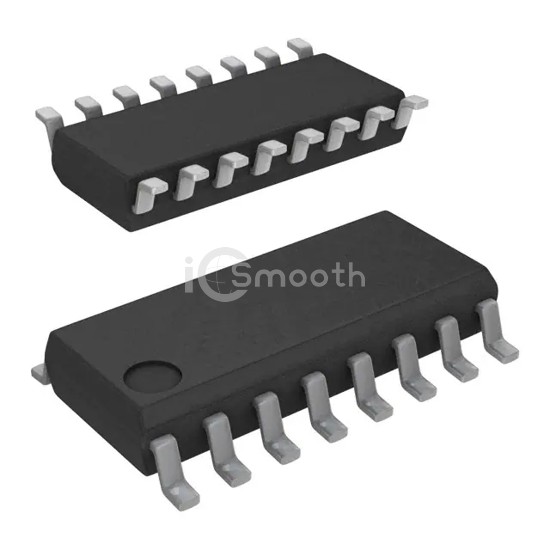

IC COMPARATOR QUAD P-P 16SOIC

TSM924ESE+T is a Linear - Comparators manufactured by Silicon Labs. IC COMPARATOR QUAD P-P 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 16-SOIC (0.154", 3.90mm Width), output type CMOS, Push-Pull, TTL.

Datasheet Request a Quote

In Stock: 3,394

Specifications

16 parameters

Product Status	Obsolete
Type	with Voltage Reference
Number of Elements	4
Output Type	CMOS, Push-Pull, TTL
Voltage - Supply, Single/Dual (±)	2.5V ~ 11V, ±1.25V ~ 5.5V
Voltage - Input Offset (Max)	10mV @ 2.5V
Current - Input Bias (Max)	-
Current - Output (Typ)	40mA

Current - Quiescent (Max)	6.5µA
CMRR, PSRR (Typ)	80dB CMRR, 80dB PSRR
Propagation Delay (Max)	12µs
Hysteresis	-
Operating Temperature	-40°C ~ 85°C
Package / Case	16-SOIC (0.154", 3.90mm Width)
Mounting Type	Surface Mount
Supplier Device Package	16-SOIC
