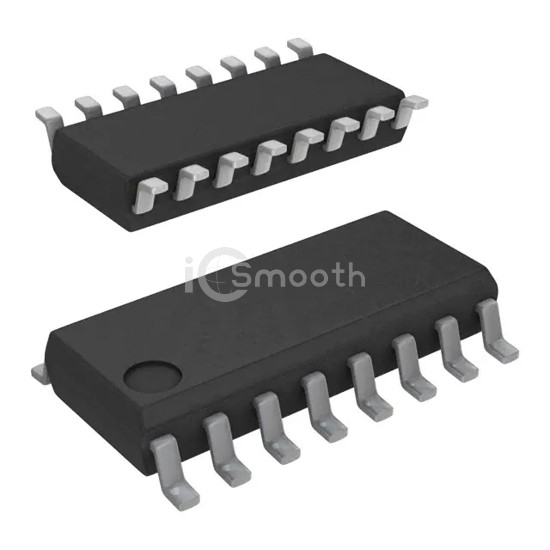

Name: SI8651BA-B-IS1R
Brand: Silicon Labs
SKU: SI8651BA-B-IS1R
Availability: InStock

REF: SI8651BA-B-IS1R Silicon Labs

SI8651BA-B-IS1R

DGTL ISO 5000VRMS 5CH GP 16SOIC

SI8651BA-B-IS1R is a Digital Isolators manufactured by Silicon Labs. DGTL ISO 5000VRMS 5CH GP 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, voltage - supply 2.5V ~ 5.5V, package / case 16-SOIC (0.154", 3.90mm Width).

Request a Quote

In Stock: 6,841

Specifications

18 parameters

Product Status	Active
Technology	Capacitive Coupling
Type	General Purpose
Isolated Power	No
Number of Channels	5
Inputs - Side 1/Side 2	4/1
Channel Type	Unidirectional
Voltage - Isolation	5000Vrms
Common Mode Transient Immunity (Min)	35kV/µs

Data Rate	150Mbps
Propagation Delay tpLH / tpHL (Max)	13ns, 13ns
Pulse Width Distortion (Max)	4.5ns
Rise / Fall Time (Typ)	2.5ns, 2.5ns
Voltage - Supply	2.5V ~ 5.5V
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.154", 3.90mm Width)
Supplier Device Package	16-SOIC
