Name: EFR32FG23A020F256GM48-B
Brand: Silicon Labs
SKU: EFR32FG23A020F256GM48-B
Price: 6.36 USD
Availability: InStock

REF: EFR32FG23A020F256GM48-B Silicon Labs

EFR32FG23A020F256GM48-B

Silicon Labs

IC RF TXRX+MCU ISM<1GHZ 48QFN

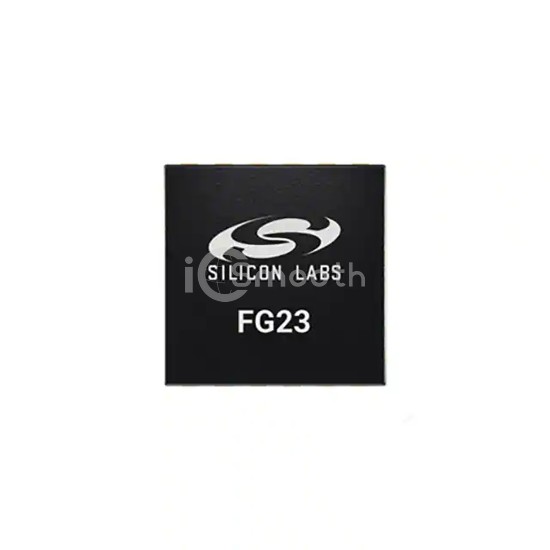

EFR32FG23A020F256GM48-B is a RF Transceiver ICs manufactured by Silicon Labs. IC RF TXRX+MCU ISM<1GHZ 48QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 1.71V ~ 3.8V, package / case 48-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 3,917

Tiered Pricing USD

1+ $6.3600 —

10+ $5.6810 -11%

25+ $5.1132 -20%

80+ $4.6586 -27%

230+ $4.2041 -34%

440+ $3.7723 -41%

1,300+ $3.1815 -50% BEST

Specifications

19 parameters

Product Status	Active
Type	TxRx + MCU
RF Family/Standard	General ISM < 1GHz
Protocol	Flex Gecko
Modulation	2FSK, 4FSK, DSSS, GFSK, GMSK, OOK, OQPSK
Frequency	110MHz ~ 223MHz, 223MHz ~ 372MHz, 372MHz ~ 557MHz, 557MHz ~ 727MHz, 742MHz ~ 970MHz
Data Rate (Max)	2Mbps
Power - Output	20dBm
Sensitivity	-125.8dBm
Memory Size	256kB Flash, 32kB RAM

Serial Interfaces	I²C, I²S, SPI, UART
GPIO	31
Voltage - Supply	1.71V ~ 3.8V
Current - Receiving	3.7mA ~ 9.5mA
Current - Transmitting	8.2mA ~ 90.6mA
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	48-VFQFN Exposed Pad
Supplier Device Package	48-QFN (6x6)
