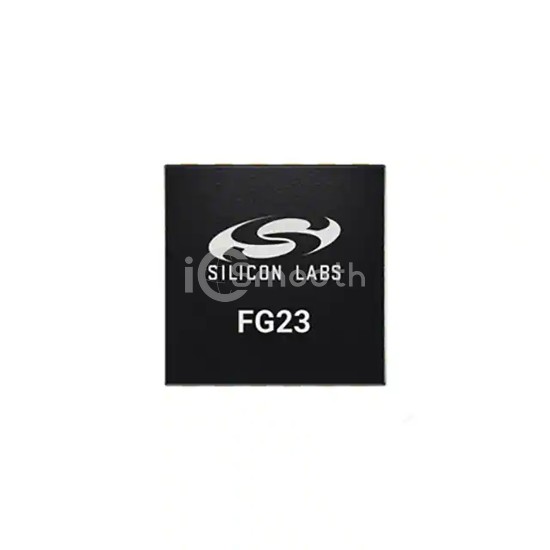

Name: EFR32FG23A011F512GM40-B
Brand: Silicon Labs
SKU: EFR32FG23A011F512GM40-B
Price: 7.12 USD
Availability: InStock

REF: EFR32FG23A011F512GM40-B Silicon Labs

EFR32FG23A011F512GM40-B

Silicon Labs

IC RF TXRX+MCU ISM<1GHZ 40QFN

EFR32FG23A011F512GM40-B is a RF Transceiver ICs manufactured by Silicon Labs. IC RF TXRX+MCU ISM<1GHZ 40QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 1.71V ~ 3.8V, package / case 40-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 4,162

Tiered Pricing USD

1+ $7.1200 —

10+ $5.4620 -23%

43+ $4.7179 -34%

129+ $4.2788 -40%

258+ $4.0465 -43%

516+ $3.8442 -46% BEST

Specifications

19 parameters

Product Status	Active
Type	TxRx + MCU
RF Family/Standard	General ISM < 1GHz
Protocol	Flex Gecko
Modulation	2FSK, 4FSK, DSSS, GFSK, GMSK, OOK, OQPSK
Frequency	110MHz ~ 727MHz, 742MHz ~ 970MHz
Data Rate (Max)	2Mbps
Power - Output	14dBm
Sensitivity	-125.8dBm
Memory Size	512kB Flash, 64kB RAM

Serial Interfaces	I²C, I²S, SPI, UART
GPIO	22
Voltage - Supply	1.71V ~ 3.8V
Current - Receiving	3.7mA ~ 9.5mA
Current - Transmitting	8.2mA ~ 90.6mA
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	40-VFQFN Exposed Pad
Supplier Device Package	40-QFN (5x5)
